PCV Valve: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Do not remove unless the PCV valve is broken.

  1. Remove the PCV hose. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV HOSE>REMOVAL .

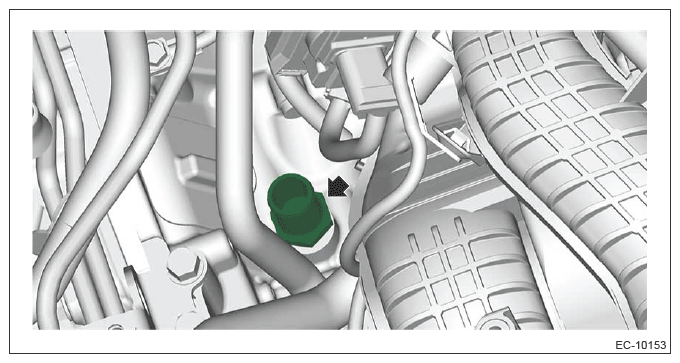

  2. Remove the PCV valve from the cylinder block RH.
    G13948682Courtesy of SUBARU OF AMERICA, INC.
  3. Remove liquid gasket from the PCV valve and the mating surface of the cylinder block RH.
