DTC B2259: Center Information Display Communication Open

DTC detecting condition:

Detected when LVDS communication with the center information display is not possible.

Trouble symptom:

Center information display cannot be displayed.

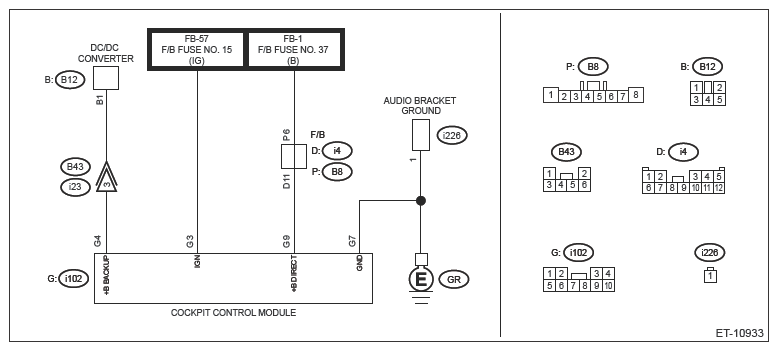

Wiring diagram:

Audio and navigation system Ref. to WIRING SYSTEM>AUDIO AND NAVIGATION SYSTEM>WIRING DIAGRAM .

G13952916Courtesy of SUBARU OF AMERICA, INC.
CAUTION:

Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to  COCKPIT CONTROL (DIAGNOSTICS)>General Description>CAUTION  .

  1. CHECK DTC  .
    1. Turn the ignition switch to ON.
    2. Using the Subaru Select Monitor, perform the clear memory of [Cockpit Control]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
    3. Turn the ignition switch OFF → ON.
    4. Read the DTC of [Cockpit Control] using the Subaru Select Monitor. Ref. to Cockpit Control (Diagnostics)>Diagnostic Trouble Code (DTC) .

    Is DTC B2259 displayed? (Current malfunction)

    Yes:  Go to  2 .

    No:  Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

    NOTE:

    In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.

  2. CHECK FUSE  .
    1. Turn the ignition switch to OFF.
    2. Check the fuse. Ref. to ENTERTAINMENT & MONITORING>RELAY AND FUSE .

    Is the check result OK?

    Yes:  Go to  3 .

    No:  Replace the fuse. If the replaced fuse blows out easily, check or replace the short circuit of the power supply harness.

  3. CHECK CONNECTOR CONNECTION  .

    Check that the connector is connected to the unit.

    Is the check result OK?

    Yes:  Go to  4 .

    No:  Connect the connector.

  4. CHECK CONNECTOR  .

    Check for poor contact of connectors or terminals.

    Is the check result OK?

    Yes:  Go to  5 .

    No:  Repair or replace the harness.

  5. CHECK POWER SUPPLY VOLTAGE  .
    1. Disconnect the connector (i102) of the cockpit control module.
    2. Turn the ignition switch to ON.
    3. Using the tester, measure the voltage between cockpit control module connector (i102) and chassis ground.
      NOTE:

      Turn the electrical parts to OFF.

      Connector and terminal

      (i102) No. 3 (+) - Chassis ground (-):

      (i102) No. 4 (+) - Chassis ground (-):

    Is the voltage 12 V or more?

    Yes:  Go to  7 .

    No:  Go to  6 .

  6. CHECK HARNESS (POWER SUPPLY)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector (B12) of the DC/DC converter.
    3. Measure the resistance between cockpit control module connector (i102) and each fuse or DC/DC converter connector (B12).

      Connector and terminal

      (i102) No. 4 - (B12) No. 1:

      (i102) No. 3 - F/B fuse No. 15:

    Is the resistance 1 Ω or less?

    Yes:  Go to  7 .

    No:  Repair or replace the open circuit of harness.

  7. CHECK HARNESS (GROUND)  .

    Measure the resistance between cockpit control module connector (i102) and chassis ground.

    Connector and terminal

    (i102) No. 7 - Chassis ground:

    Is the resistance 1 Ω or less?

    Yes:  Go to  8 .

    No:  Repair or replace the open circuit of harness.

  8. CHECK BATTERY  .

    Check the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY .

    Is the check result OK?

    Yes:  Go to  9 .

    No:  Charge or replace the battery.

  9. CHECK CONNECTOR AND CABLE  .

    Visually check the connector, terminal or cable body of the cockpit control module and center information display.

    Is the check result OK?

    Yes:  Go to  10 .

    No:  Reconnect the connector.

    NOTE:

    Replace the cable if the cable or connector is faulty.

  10. CHECK OPERATION  .
    1. Connect all connectors.
    2. Turn the ignition switch to ACC and the power supply switch of the unit to ON.

    Does the power turn ON?

    Yes:  Currently no failure is found.

    No:  Go to  11 .

  11. CHECK CENTER INFORMATION DISPLAY  .
    1. Turn the ignition switch to OFF.
    2. Replace the center information display with a new or properly functioning part. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY .
    3. Turn the ignition switch to ON.
    4. Using the Subaru Select Monitor, perform the clear memory of [Cockpit Control]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
    5. Turn the ignition switch OFF → ON.
    6. Read the DTC of [Cockpit Control] using the Subaru Select Monitor. Ref. to Cockpit Control (Diagnostics)>Diagnostic Trouble Code (DTC) .

    Is DTC B2259 displayed? (Current malfunction)

    Yes:  Return the center information display to its original position, and replace the cockpit control module. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY .

    No:  Center information display had a failure.
