Vacuum Pump & Plate

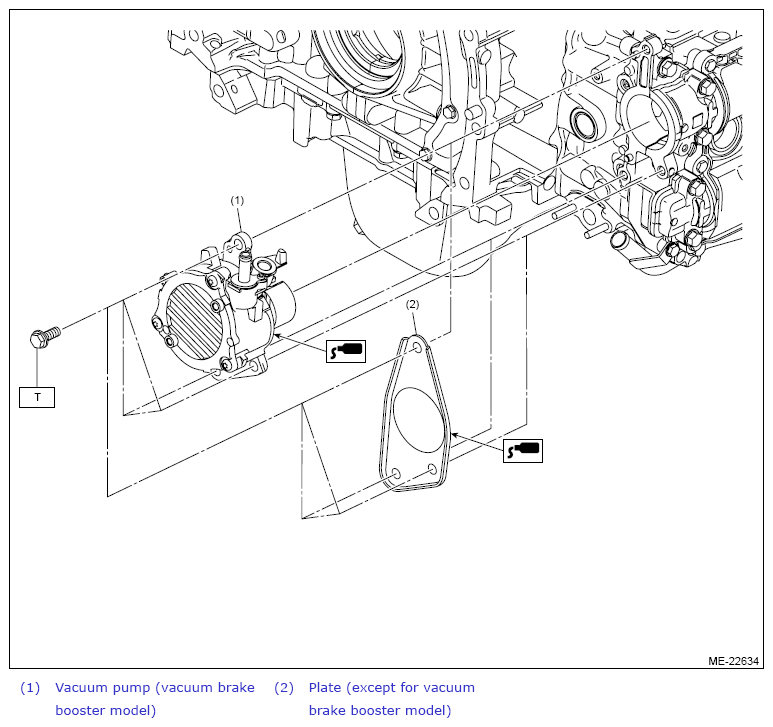

Fig 1: Vacuum Pump & Plate Components (With Torque Specification)

G14383870

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)
