Emission Control Systems (Aux. Emission Control Devices): Canister: Installation

Install the canister bracket.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Connect the purge tube to the canister. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .

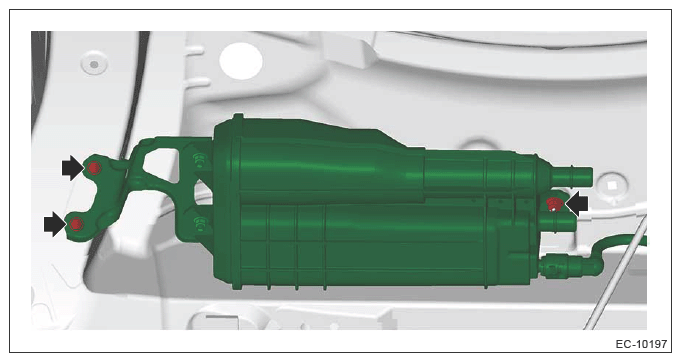

Install the canister.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

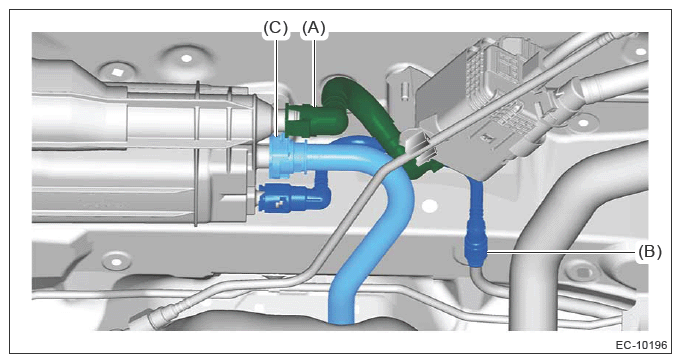

Connect the drain tube (A) and purge tube (B).
Drain tube:

Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

Purge tube:

Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .
Connect the vent tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .

Courtesy of SUBARU OF AMERICA, INC.
Install the rear differential. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VA-TYPE)> INSTALLATION .
