Rear Disc Brake

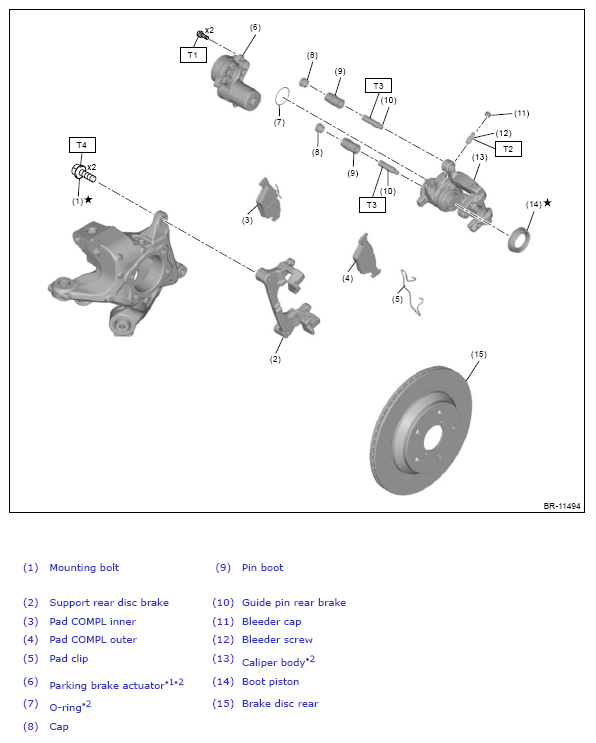

Fig 1: Rear Disc Brake Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

*1: Do not reuse it when the emergency release of parking brake was performed or when the actuator has a malfunction.

*2: When replacing the parking brake actuator or the caliper body, always replace the O-ring with the supplied new part.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 73 (7.4, 53.8)
