17-Inch Model

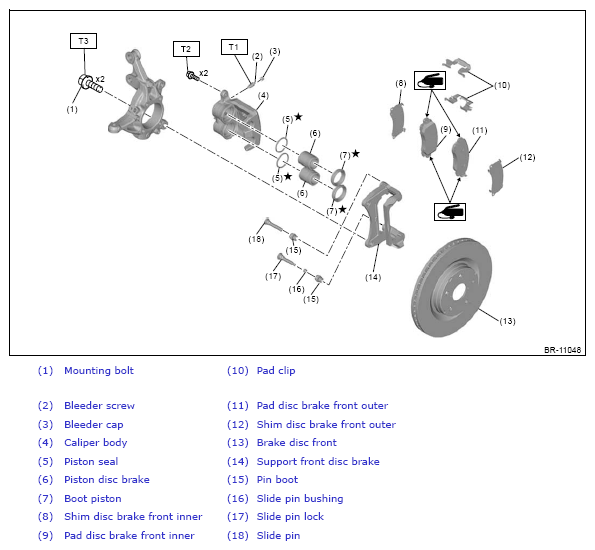

Fig 1: Front Disc Brake Components (With Torque Specifications) (17 - Inch Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 135 (13.8, 99.6)
