Front Seat

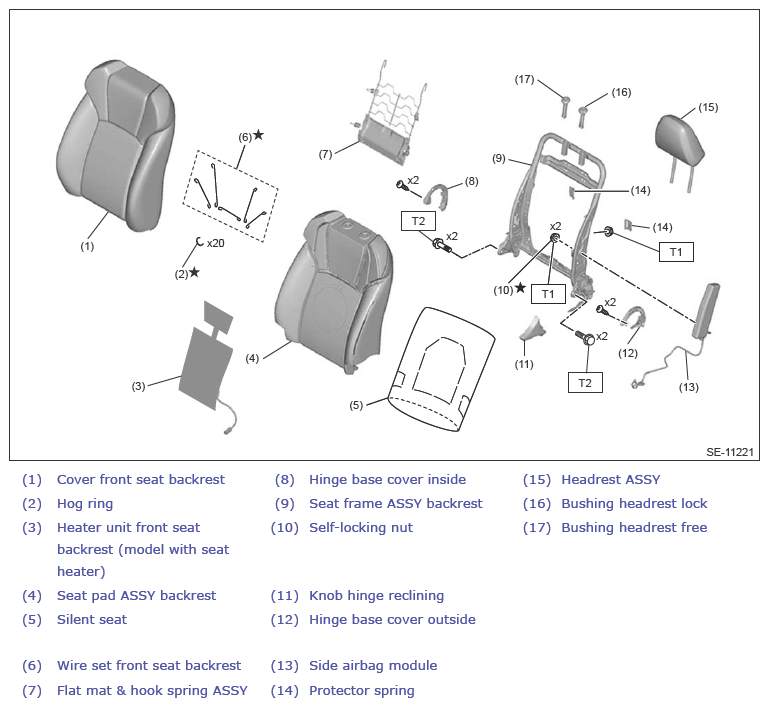

Fig 1: Front Seat Components (With Torque Specification) - Driver Seat, Manual Type (1 Of 2)
G14411449Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2:  Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

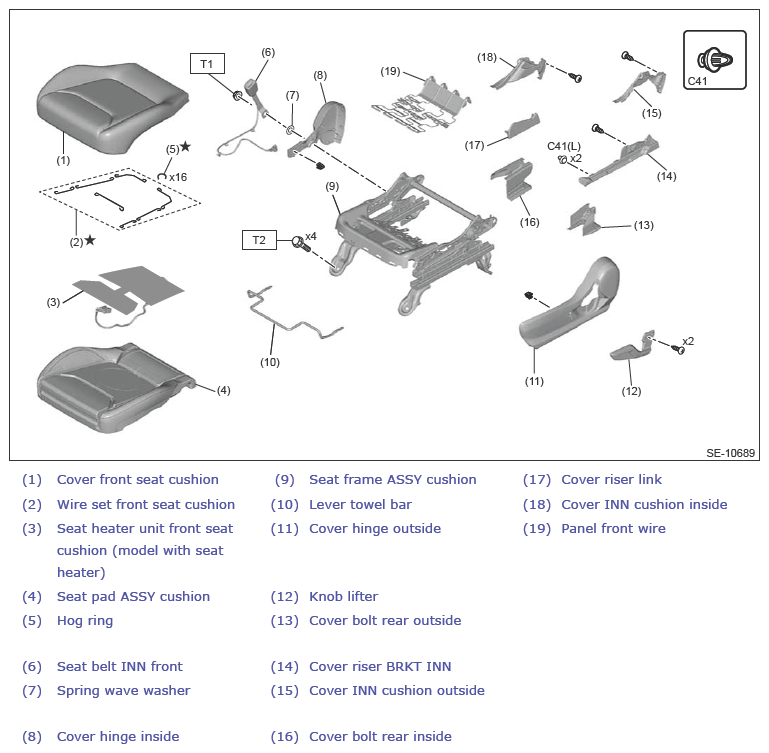

Fig 2: Front Seat Components (With Torque Specification) - Driver Seat, Manual Type (2 Of 2)
G14411450Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2:  Ref. to SEATS>FRONT SEAT>INSTALLATION .

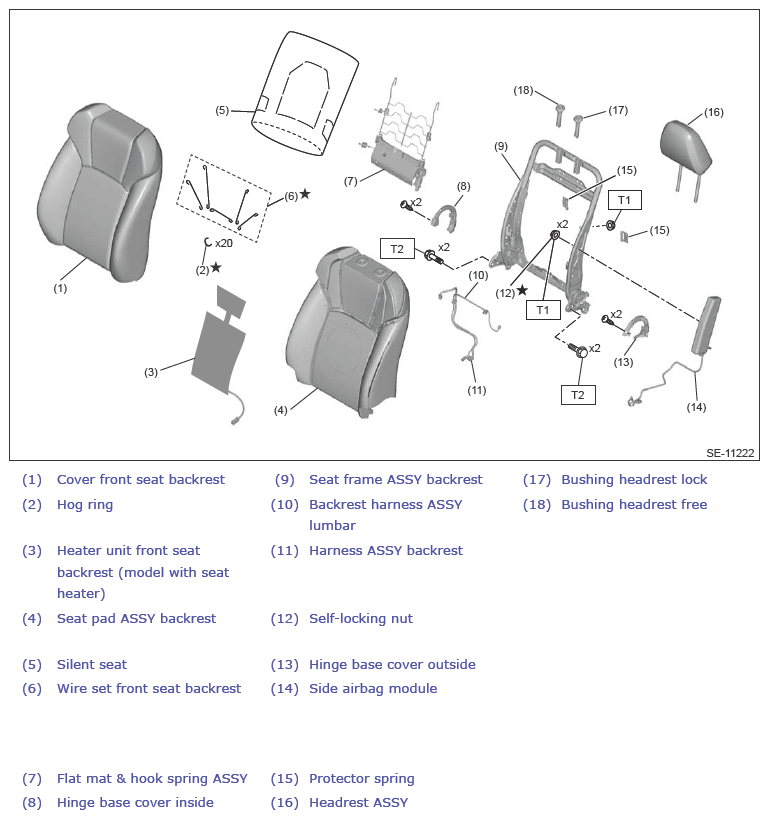

Fig 3: Front Seat Components (With Torque Specification) - Driver Seat, Power Type (1 Of 2)
G14411451Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2:  Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

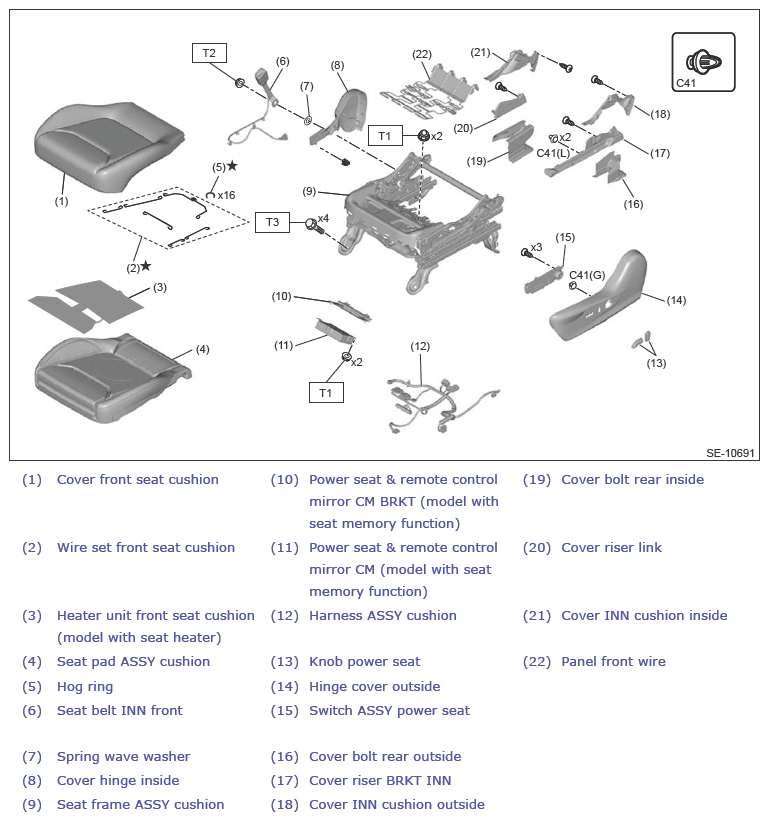

Fig 4: Front Seat Components (With Torque Specification) - Driver Seat, Power Type (2 Of 2)
G14411452Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28.0)

T3:  Ref. to SEATS>FRONT SEAT>INSTALLATION .

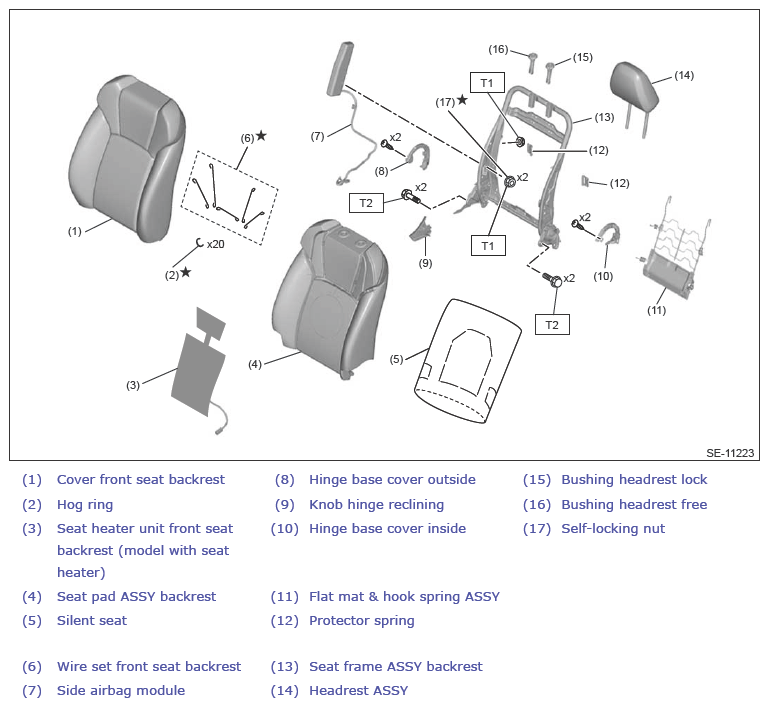

Fig 5: Front Seat Components (With Torque Specification) - Passenger'S Seat Manual Type (1 Of 2)
G14411453Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2:  Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

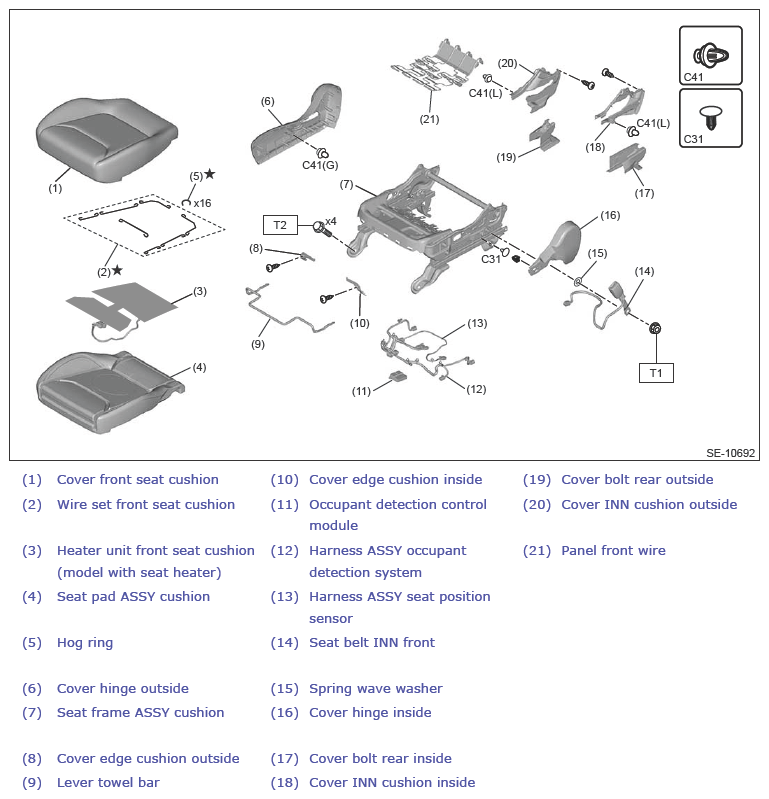

Fig 6: Front Seat Components (With Torque Specification) - Passenger'S Seat Manual Type (2 Of 2)
G14411454Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2:  Ref. to SEATS>FRONT SEAT>INSTALLATION .

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.

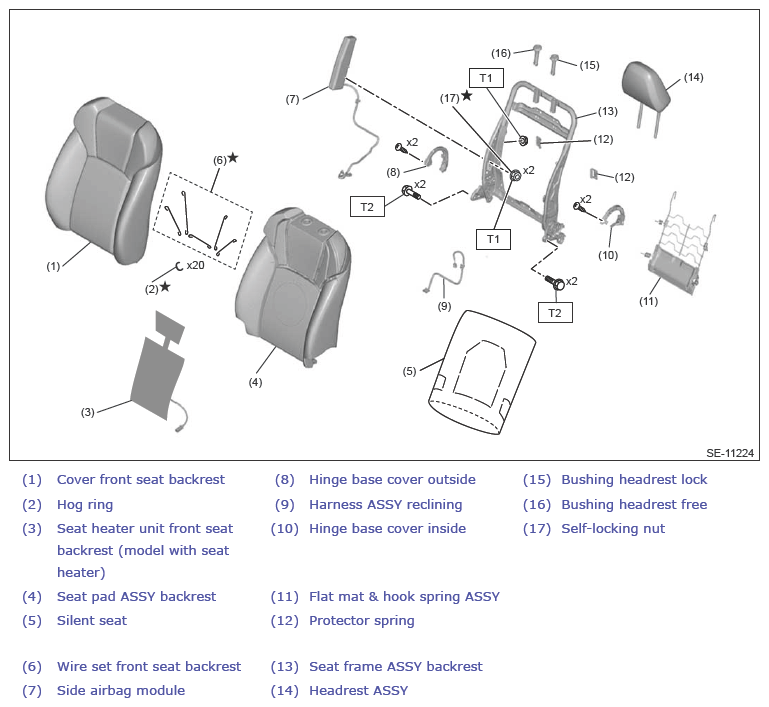

Fig 7: Front Seat Components (With Torque Specification) - Passenger'S Seat Power Type (1 Of 2)
G14411455Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2:  Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

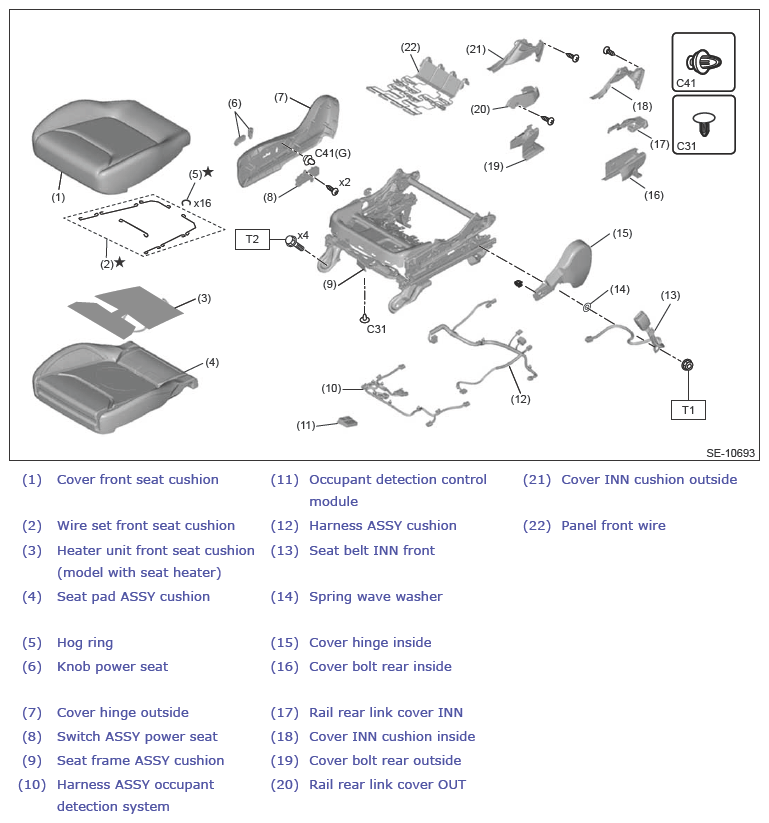

Fig 8: Front Seat Components (With Torque Specification) - Passenger'S Seat Power Type (2 Of 2)
G14411456Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2:  Ref. to SEATS>FRONT SEAT>INSTALLATION .

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.
