Stereo Camera: Installation

CAUTION:
  • When the stereo camera has been replaced with a new part, the camera remains in a failed state until adjustment and inspection are performed.
  • When the windshield glass has been replaced, removed or installed, always perform the adjustment and inspection of the stereo camera and the heater heating and cooling fan drive test. Ref. to EYESIGHT>CAMERA ADJUSTMENT, INSPECTION .
  • Do not apply any impact to the stereo camera. Even the slightest shock will deviate the optical axis of the camera, resulting in the loss of normal operation of the camera.
  1. Install the stereo camera.
    CAUTION:
    • Do not touch the lenses RH and LH, cooling fan at the center and harness. If they are accidentally touched, or dirt or dust is accumulated on them, be sure to replace the stereo camera.
      G14418366Courtesy of SUBARU OF AMERICA, INC.
    • Do not peel off the aluminum-tape (a). The performance and quality may be affected.
      G14418367Courtesy of SUBARU OF AMERICA, INC.
    1. Enter the passenger room, and remove the HOOD RH/LH from the stereo camera.
      CAUTION:
      • Do not remove the HOOD RH/LH until just before installing the stereo camera.
      • Do not let the HOOD RH/LH touch the lens portion of the stereo camera. Even the slightest contact will deviate the optical axis of the stereo camera, resulting in the loss of normal operation of the camera.

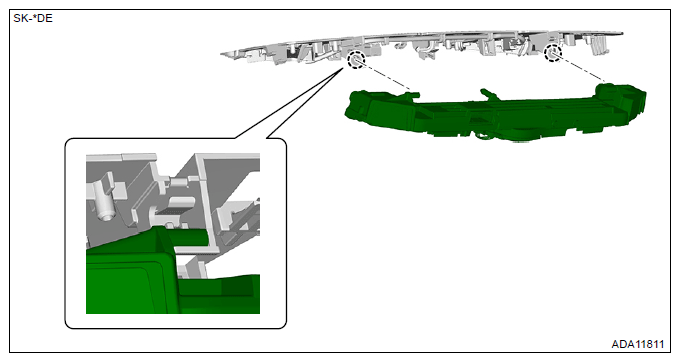

    2. Align and temporarily place the guides of the stereo camera to the camera bracket.
      G14418372Courtesy of SUBARU OF AMERICA, INC.

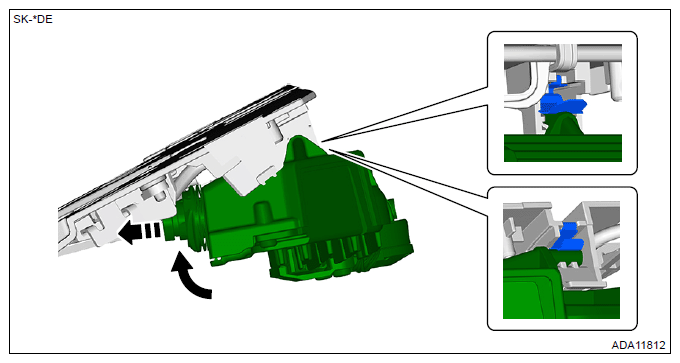

    3. As shown in the figure, align the pin of the stereo camera to the center clip.
    4. While aligning the guides to the clips on one side at a time, slowly push in the stereo camera to install.
      CAUTION:
      • Do not apply any impact to the stereo camera by letting it contact the adjacent parts.
      • Do not insert the guides on both sides at the same time, since strong impact may be applied to the stereo camera that may cause damage.
      • While being careful not to let the harness and others caught, check that the clips and guides are engaged securely.
      G14418373Courtesy of SUBARU OF AMERICA, INC.
    5. Connect the connector.
  2. Install the cover EyeSight.
    CAUTION:
    • Do not apply any impact to the stereo camera.
    • Install precisely so that it will not block the visibility of the stereo camera.
    NOTE: Try not to peel the polyurethane of the cover EyeSight.
  3. Install the overhead console. Ref. to INSTRUMENTATION/DRIVER INFO>WARNING BOX>INSTALLATION .
  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  5. Perform the adjustment or inspection of the stereo camera. Ref. to EYESIGHT>CAMERA ADJUSTMENT, INSPECTION .
