Rear Planetary Gear: Disassembly

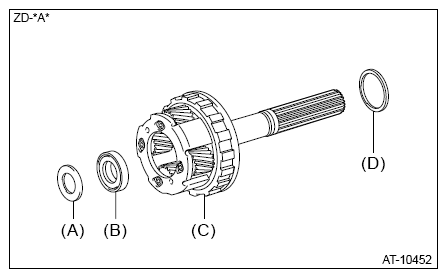

Remove the front thrust bearing race, thrust needle roller bearing, and rear thrust bearing race.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Front thrust bearing race
(B)	Thrust needle roller bearing
(C)	Rear planetary gear
(D)	Rear thrust bearing race

Check the rear planetary gear.

Measure the pinion gear thrust clearance "C" using a thickness gauge.

Specification:

0.2 - 0.6 mm (0.01 - 0.02 in)

Courtesy of SUBARU OF AMERICA, INC.

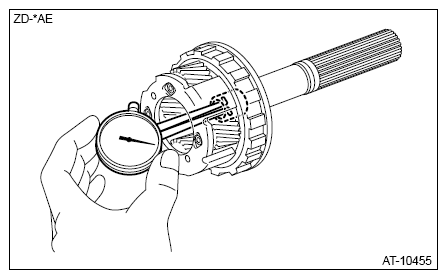

Using a caliper gauge, measure the rear planetary gear inner diameter.

Specification:

18.025 mm (0.7096 in)

Courtesy of SUBARU OF AMERICA, INC.

If the thrust clearance or the inner diameter exceeds the specification, replace with a new rear planetary gear.
