Shift Retainer

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the MT gear shift lever. Ref. to CONTROL SYSTEMS>MT GEAR SHIFT LEVER>REMOVAL .
  3. Set the transmission jack.
    G16525488Courtesy of SUBARU OF AMERICA, INC.

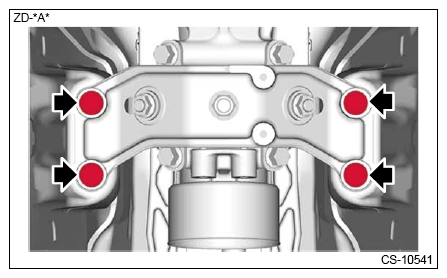

  4. Remove the bolt securing the transmission rear crossmember to the vehicle.
    G16525489Courtesy of SUBARU OF AMERICA, INC.
  5. Lower the transmission jack and tilt the transmission.

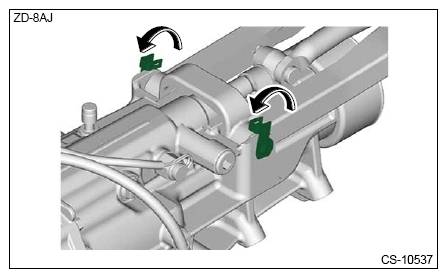

  6. Release the lock and remove the shift retainer pins.
    G16525490Courtesy of SUBARU OF AMERICA, INC.

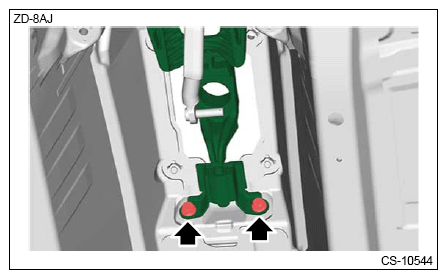

  7. Remove the shift retainer and the shift retainer bushing as a unit.
    G16525491Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the shift retainer bushing.
    G16525492Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the outer bushing and the inner bushing.
G16525493Courtesy of SUBARU OF AMERICA, INC.
(A) Outer bushing
(B) Inner bushing
