Air Intake Boot: Installation

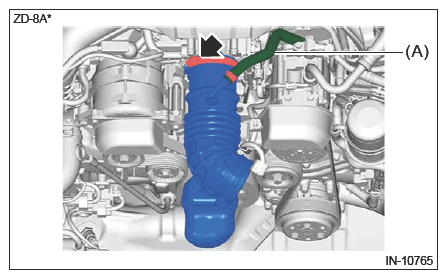

- Install the air intake boot, and connect the PCV hose No. 2 (A).
Tightening torque:
3 N.m (0.3 kgf-m, 2.2 ft-lb)
- Install the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
