Starting System & Charging System: Starter: Installation

Set the starter to the transmission, and temporarily install the bolt which secures the upper side of the starter.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.

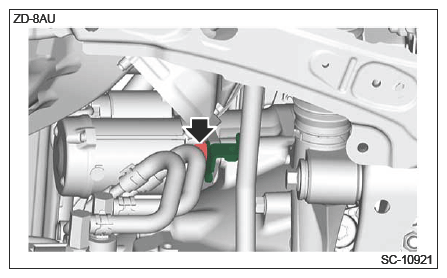

Install the bolt which secures the lower side of the starter together with the cable stay.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

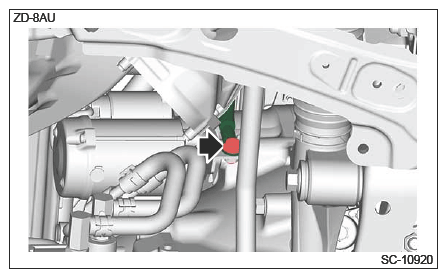

Connect the ground terminal.
Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>INSTALLATION .
Lower the vehicle.

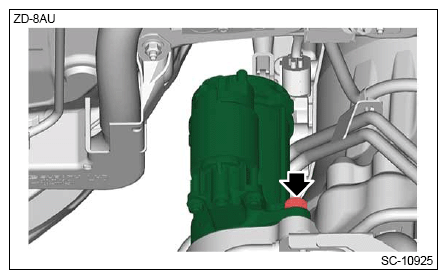

Tighten the bolt which secures the upper side of the starter.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

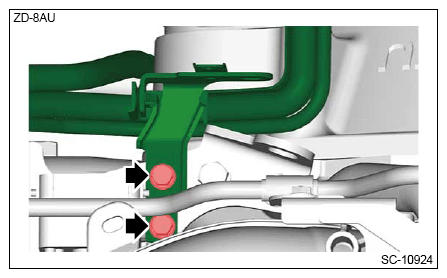

Install the bracket to the engine rear hanger.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

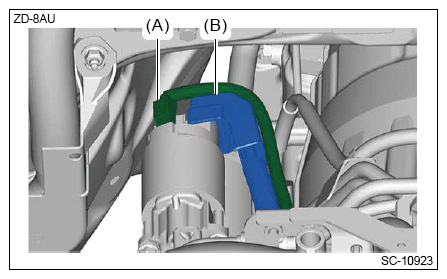

Connect the terminal B (B) and connector (A).
Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

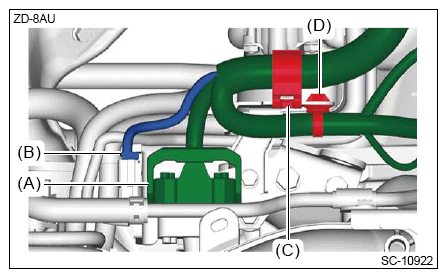

Secure the bulkhead wiring harness with clip (D) and clip (C), and connect connector (B) and connector (A).

Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>COLLECTOR COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
