Transmission Case: Installation

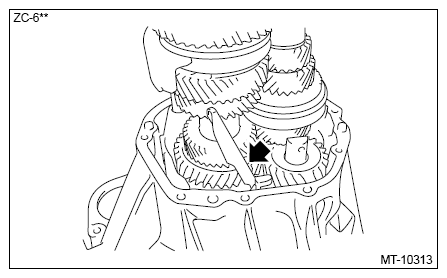

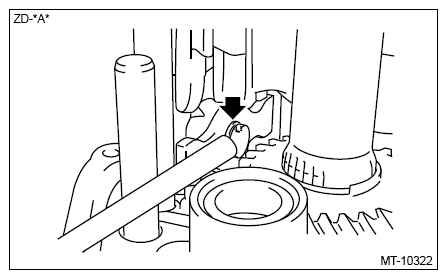

Install the oil receiver pipe.
CAUTION: Check that the tip of the oil receiver pipe is not lifted or disconnected.

Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the reverse idler gear shaft.
NOTE: Perform this step only if the reverse idler gear has not been removed.
1. Remove the bolts and gasket. (Clutch housing side)
2. Temporarily install the reverse idler gear shaft securing bolts using a new gasket. (Clutch housing side)
  CAUTION: Always use a new bolt.
Courtesy of SUBARU OF AMERICA, INC.

Install the transmission case.

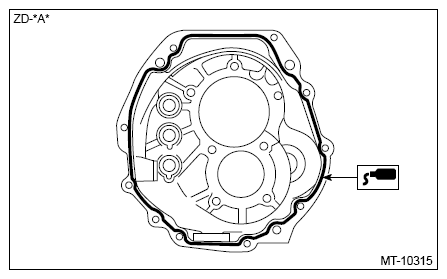

Apply liquid gasket to the mating surface of the transmission case as shown in the figure.

NOTE:

Before applying liquid gasket, degrease the old liquid gasket seal surface of the transmission case and clutch housing.
Install within 10 min. after applying liquid gasket.

Preparation items:

Liquid gasket: THREE BOND 1281 or equivalent

Courtesy of SUBARU OF AMERICA, INC.

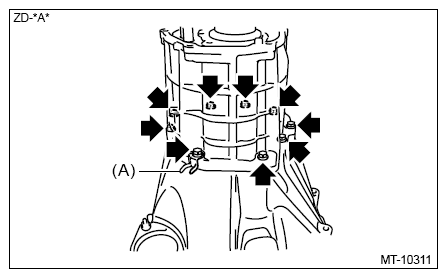

Tighten the transmission case and the clamp (A).
CAUTION: Always use a new bolt.

Tightening torque:

29 N.m (3.0 kgf-m, 21.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Install the reverse idler gear shaft securing bolts using a new gasket. (Transmission case side)
CAUTION: Always use a new bolt.

Tightening torque:

28 N.m (2.9 kgf-m, 20.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the reverse idler gear shaft securing bolt. (Clutch housing side)
Tightening torque:

28 N.m (2.9 kgf-m, 20.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

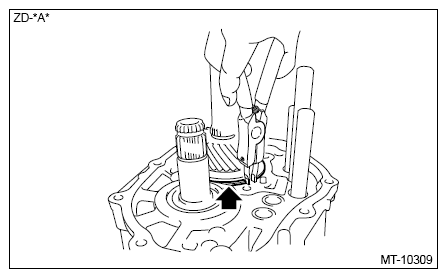

Install a new snap ring.

Courtesy of SUBARU OF AMERICA, INC.

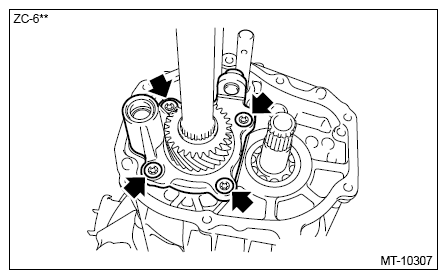

Install the rear bearing retainer.
CAUTION: Always use a new bolt.

Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the shift arm pivot.

Courtesy of SUBARU OF AMERICA, INC.

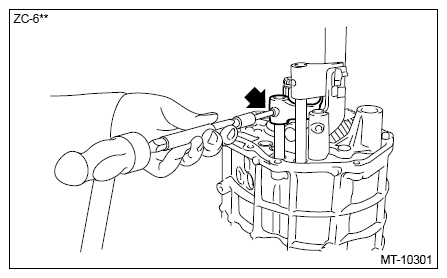

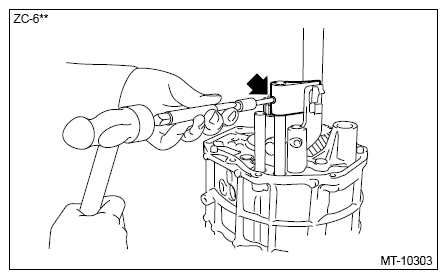

Using a new spring pin, install the gear shift head No. 2.
Spring pin insertion depth (from the end face of the gear shift head No. 2):

0 mm (0 in)

Courtesy of SUBARU OF AMERICA, INC.

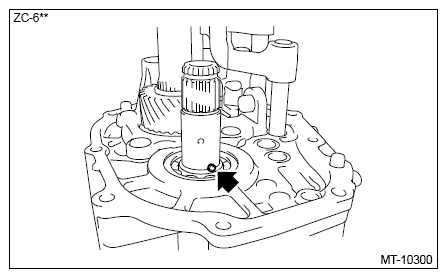

Install the ball.

Courtesy of SUBARU OF AMERICA, INC.

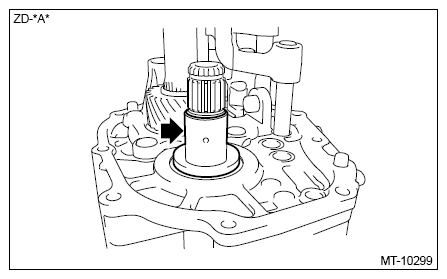

Install the 6th gear bearing inner race.
NOTE: Apply transmission gear oil to the 6th gear bearing inner race.

Courtesy of SUBARU OF AMERICA, INC.

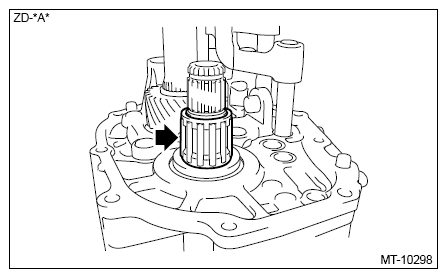

Install the needle roller bearing.
NOTE: Apply transmission gear oil to the needle roller bearing.

Courtesy of SUBARU OF AMERICA, INC.

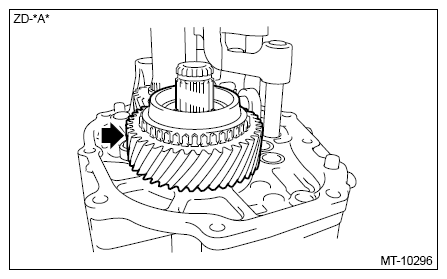

Install the 6th gear.
NOTE: Apply transmission gear oil to the 6th gear.

Courtesy of SUBARU OF AMERICA, INC.

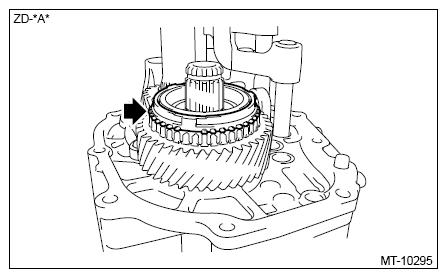

Install the synchronizer ring No. 2.
NOTE: Apply transmission gear oil to the synchronizer ring No. 2.

Courtesy of SUBARU OF AMERICA, INC.

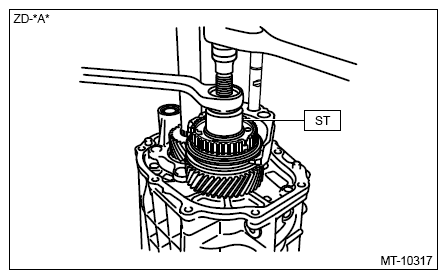

Use the ST to install the clutch hub No. 4, hub sleeve No. 4, gear shift fork No. 4, and gear shift fork rod No. 4 as a unit.

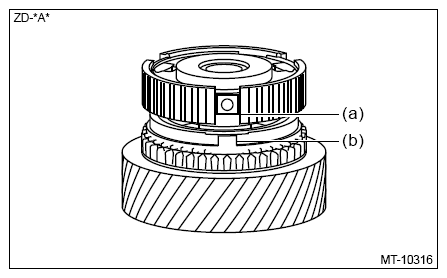

CAUTION: Align the key groove (a) of the clutch hub No. 4 with the protrusion (b) of the synchronizer ring No. 2.

Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST: INSTALLER (18682AA000)

Courtesy of SUBARU OF AMERICA, INC.

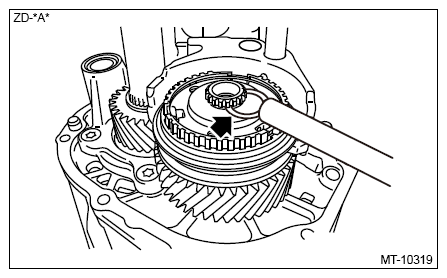

Install the snap ring.

Select a suitable snap ring so that the clearance between the clutch hub No. 4 and snap ring is within the specified value.

NOTE:

Select the thickest one that can be installed.
The snap ring is a non-reusable part.

Specification:

0 - 0.1 mm (0 - 0.004 in)

Courtesy of SUBARU OF AMERICA, INC.

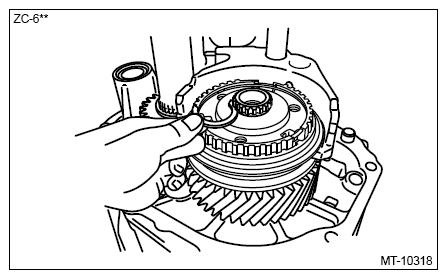

Install the selected snap ring.

Courtesy of SUBARU OF AMERICA, INC.

Install the balls, compression spring, and head straight screw plug.

CAUTION: Always use a new head straight screw plug.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Ball
(B)	Compression spring
(C)	Head straight screw plug

Using a new E-ring, install the shift arm.
NOTE: Align the end of the shift arm with the cutout portion of the gear shift fork rod No. 4.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Install the gear shift fork rod No. 5.

Set the balls (A), and install the gear shift fork rod No. 5 (B).

Courtesy of SUBARU OF AMERICA, INC.

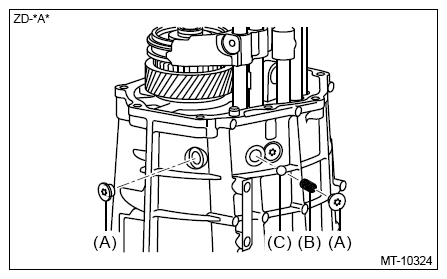

Install the balls, compression spring, and head straight screw plug.

CAUTION: Always use a new head straight screw plug.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Head straight screw plug
(B)	Compression spring
(C)	Ball

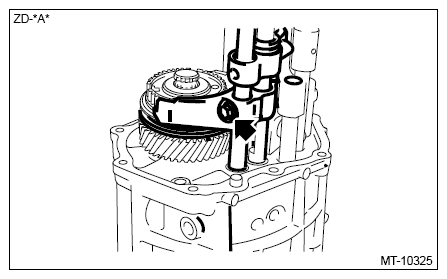

Install the bolt that secures the gear shift fork rod No. 5.
CAUTION: Always use a new bolt.

Tightening torque:

19.5 N.m (2.0 kgf-m, 14.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Using a new spring pin, install the gear shift head No. 1.
Spring pin insertion depth (from the end face of the gear shift head No. 1):

0 mm (0 in)

Courtesy of SUBARU OF AMERICA, INC.
Using a new spring pin, install the gear shift head No. 3.
Spring pin insertion depth (from the end face of the gear shift head No. 3):

0 mm (0 in)

Courtesy of SUBARU OF AMERICA, INC.

Install the shift shaft and shift block.

Install the shift block.

Courtesy of SUBARU OF AMERICA, INC.

Set the shift shaft and shift block as a unit, and then slide the shift block to install it.

Courtesy of SUBARU OF AMERICA, INC.

Install the extension case. Ref. to MANUAL TRANSMISSION>EXTENSION CASE>INSTALLATION .
