Neutral Position Switch

Using a new gasket, install the neutral position switch.

NOTE: Use the following formula to calculate the reading of a torque wrench when tightening with a crowfoot wrench.

Calculation formula

T = 32.3 N.m (3.3 kgf-m, 23.8 ft-lb) x L1/(L1 + L2)

T: Reading of the torque wrench

L1: Effective length of the torque wrench

L2: Effective length of the crowfoot wrench

NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.

Courtesy of SUBARU OF AMERICA, INC.

(a)	Effective length of the crowfoot wrench (L2)
(b)	Effective length of the torque wrench (L1)
(c)	Center of the open end of crowfoot wrench
(d)	Center of drive square of the torque wrench
(e)	Center of the position where a force is applied by hand

Tightening torque:

32.3 N.m (3.3 kgf-m, 23.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

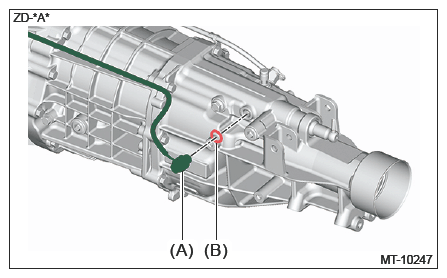

(A)	Neutral position switch
(B)	Gasket

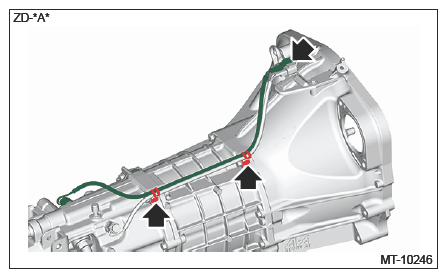

Install the clip securing the connector and harness.

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission body. Ref. to MANUAL TRANSMISSION>TRANSMISSION ASSEMBLY>INSTALLATION .
