Master Cylinder: Disassembly

CAUTION:

When using a vise, place aluminum plates or wooden pieces between the contacting surfaces between the vise and the master cylinder to prevent master cylinder damage.
When using a vise, be careful not to clamp the cylinder portion as that can cause the master cylinder to get deformed.

Remove the clutch hose and clutch pipe. Ref. to CLUTCH SYSTEM>CLUTCH PIPE AND HOSE>REMOVAL

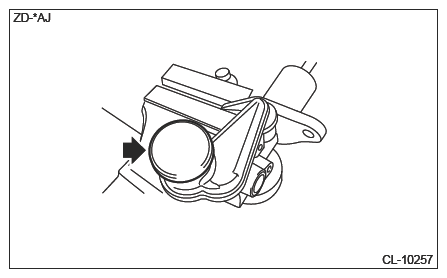

Remove the reservoir tank cap.

Courtesy of SUBARU OF AMERICA, INC.

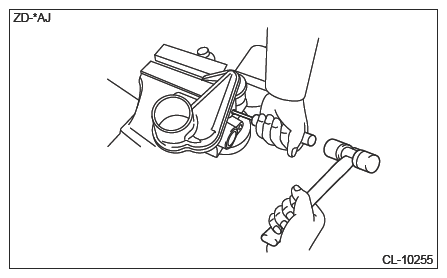

Use a pin punch and a hammer to remove the pin.

Courtesy of SUBARU OF AMERICA, INC.

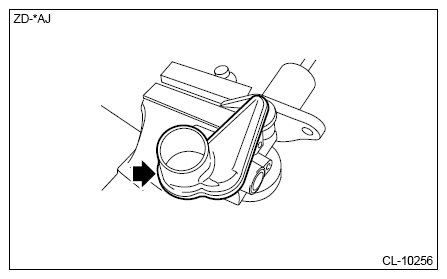

Remove the reservoir tank.

Courtesy of SUBARU OF AMERICA, INC.

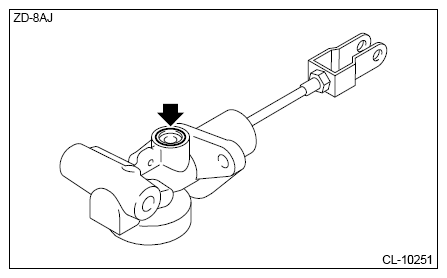

Remove the seal reservoir.

Courtesy of SUBARU OF AMERICA, INC.

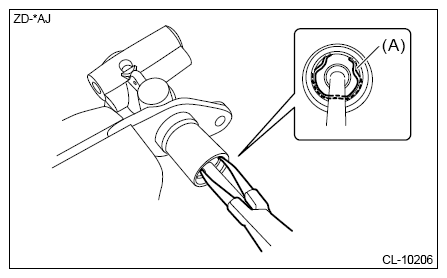

Remove the snap ring (A).

Courtesy of SUBARU OF AMERICA, INC.

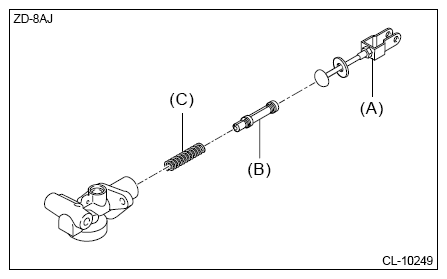

Remove the push rod, piston, and spring.
CAUTION: Be careful not to scratch the inside of master cylinder.

Courtesy of SUBARU OF AMERICA, INC.
