Clutch Pedal: Assembly

Install the pedal pad.
Install the clutch pedal stopper B.
Install the bushing.
Install the clutch pedal stopper A.

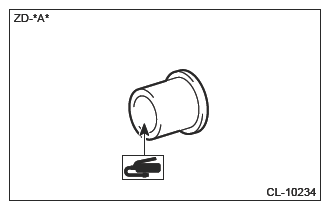

Apply grease to the inner periphery of the clutch pedal bushing.
Preparation items:

Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the clutch pedal bushing.
Set the clutch pedal and master cylinder lever.
Use a pin punch and a hammer to install the spring pin.

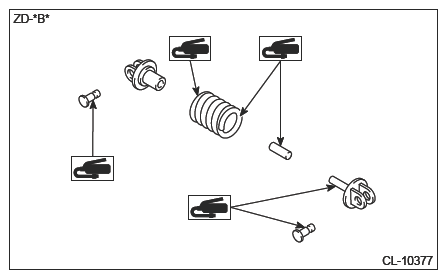

Apply grease to the sliding surfaces of the assist rod A, assist rod B, assist bushing, assist spring, and assist pin.
Preparation items:

Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Assemble the assist rod A, assist rod B, assist spring and assist bushing.
Set the assist spring assembly, and then install the assist pin and clip.
CAUTION: Always use a new clip.
Install the clutch start switch. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>INSTALLATION .
Install the clutch switch. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>INSTALLATION .
