Rear Planetary Gear: Installation

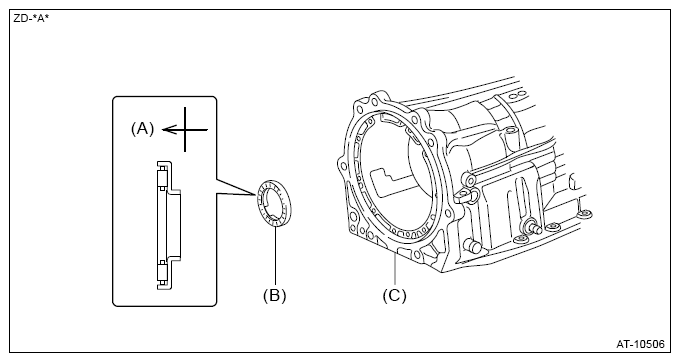

Install the thrust needle roller bearing.

NOTE: Make sure to install the thrust needle roller bearing in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Oil pump side
(B)	Thrust needle roller bearing
(C)	Transmission case

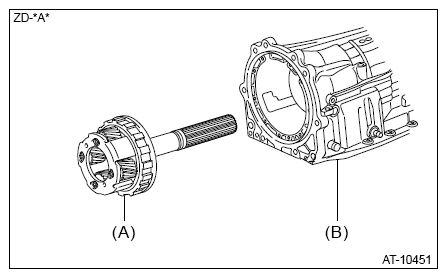

Install the rear planetary gear.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Rear planetary gear
(B)	Transmission case

Check the No. 4 brake pack clearance.

Measure height "H" from the brake apply tube (A) upper face to the No. 4 brake flange (B) mounting surface.
NOTE:
- Measure at four points at 90° intervals and calculate the average.
- If the value is outside the specification, check the 1st & reverse brake piston.
Specification:

23.32 - 24.18 mm (0.918 - 0.952 in)

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate pack clearance "C".

Specification:

0.5 - 0.8 mm (0.02 - 0.03 in)

Courtesy of SUBARU OF AMERICA, INC.

C = H - T1 - 0.18 mm (0.007 in) + T2

C	Pack clearance mm (in)
H	Measured value (mm (in)) of (1)
T1	Measured values (mm (in)) of the step 3. (4) or 3. (5)
T2	No. 4 front brake flange standard value 1.8 mm (0.07 in)
0.18 (0.007)	Constant mm (in)

If the value exceeds the specification, adjust the thickness of the No. 4 front brake flange so that the value is within the initial standard. Ref. to AUTOMATIC TRANSMISSION>REAR PLANETARY GEAR>REMOVAL .
Specification:

23.64 - 26.00 mm (0.931 - 1.024 in)

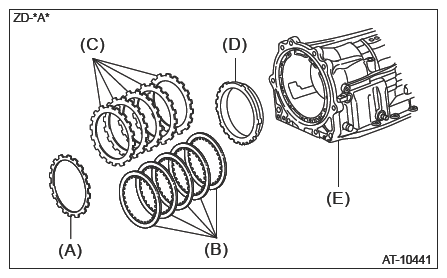

Install the No. 4 rear brake flange, No. 4 brake discs, No. 4 brake plates, and No. 4 front brake flange.

NOTE: When replacing with new No. 4 brake discs, soak them in the ATF for 15 minutes.

Courtesy of SUBARU OF AMERICA, INC.

Install the brake plate stopper spring.

Courtesy of SUBARU OF AMERICA, INC.
Install the intermediate shaft. Ref. to AUTOMATIC TRANSMISSION>INTERMEDIATE SHAFT>INSTALLATION .
