Rear Planetary Gear: Assembly
- Install the thrust needle roller bearing.NOTE: Make sure to install the thrust needle roller bearing in the right direction.
- Use vaseline to attach the front thrust bearing race.NOTE: Make sure to install the front thrust bearing race in the right direction.
- Use vaseline to attach the rear thrust bearing race.NOTE: Make sure to install the rear thrust bearing race in the right direction.

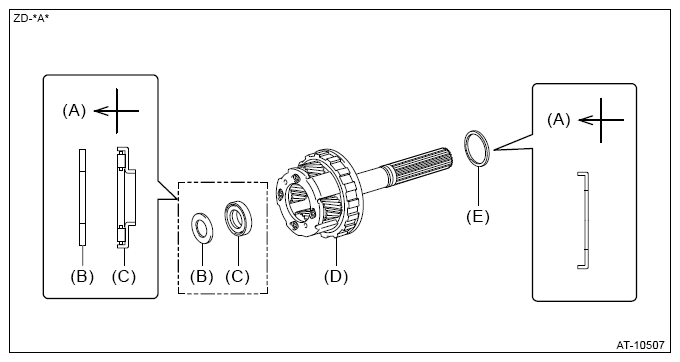

| (A) | Oil pump side |
| (B) | Front thrust bearing race |
| (C) | Thrust needle roller bearing |
| (D) | Rear planetary gear |
| (E) | Rear thrust bearing race |
