No. 2 Brake Cylinder

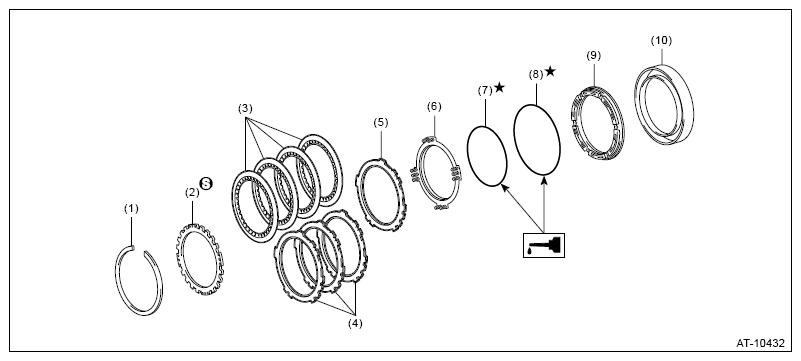

G16525534Courtesy of SUBARU OF AMERICA, INC.
(1) Snap ring
(2) No. 2 front brake flange
(3) No. 2 brake disc
(4) No. 2 brake plate
(5) No. 2 rear brake flange
(6) No. 2 brake piston return spring
(7) O-ring
(8) O-ring
(9) No. 2 brake piston
(10) No. 2 brake cylinder
