Steering Gearbox: Removal

  1. Set the steering wheel to the straight-ahead position.
  2. Adjust the tilt position of the column assembly steering to the neutral position.
    CAUTION: Place the tilt lever to the lock position after the column assembly steering is adjusted.
  3. Prevent the steering wheel from turning using the seat belt.
    CAUTION: Make sure the steering wheel is firmly secured to avoid damaging the harness.
    G11245584Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  5. Remove the under cover front and the under cover COMPL front T/M. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  6. Remove the under cover rear. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .
  7. Remove the sub frame front LWR C COMPL. Ref. to FRONT SUSPENSION>SUB FRAME>REMOVAL .
  8. Remove the stabilizer front and the sub frame COMPL as a unit. Ref. to FRONT SUSPENSION>STABILIZER>REMOVAL>STABILIZER .
  9. Disconnect the tie-rod end. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>TIE-ROD END>REMOVAL .
  10. Disconnect the lower side of the universal joint assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL .

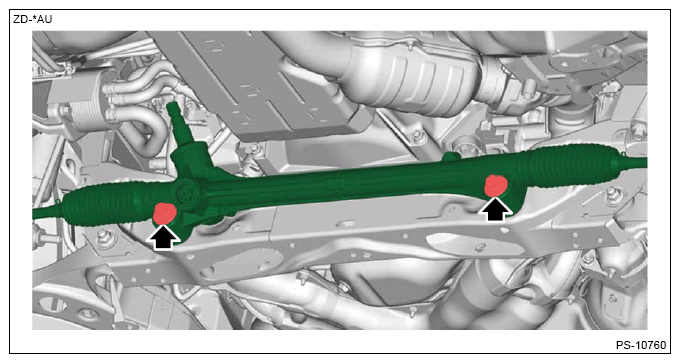

  11. Remove the bolts, and then remove the steering gearbox assembly.
G16526482Courtesy of SUBARU OF AMERICA, INC.
