Rear Exhaust Pipe: Installation

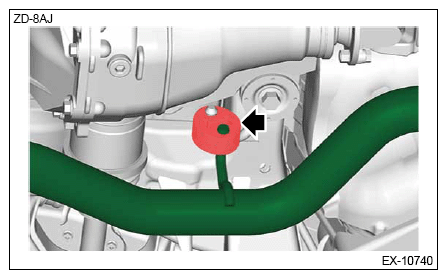

Apply a coat of spray type lubricant to the mating area of cushion rubber.
Install the cushion rubber.
Install the rear exhaust pipe.
NOTE: After installation, degrease the cushion rubber.

Courtesy of SUBARU OF AMERICA, INC.

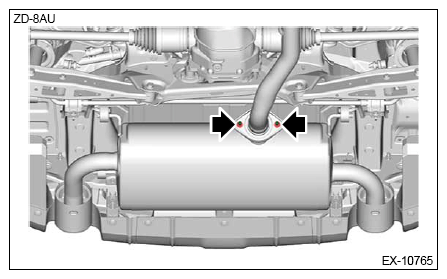

Using a new gasket, connect the rear exhaust pipe and muffler.
CAUTION: Be sure to use a new self-locking nut.

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

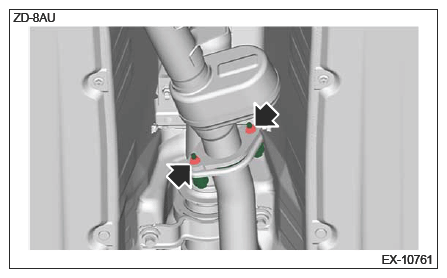

Using a new gasket, connect the center exhaust pipe and the rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
