Muffler Cutter

  1. Install the muffler cutter.

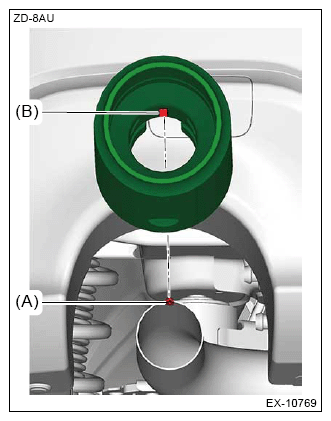

    1. Align the cutout portion (B) of the muffler cutter with the protrusion portion (A) of the tail pipe and push it in to the end.
      G16524267Courtesy of SUBARU OF AMERICA, INC.

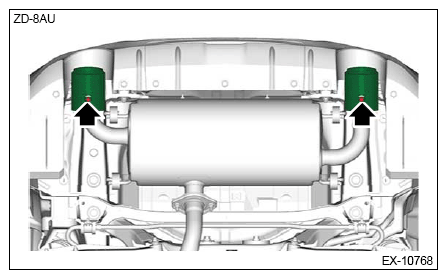

    2. Install the muffler cutter mounting bolt.

      Tightening torque:

      7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

G16524263Courtesy of SUBARU OF AMERICA, INC.
