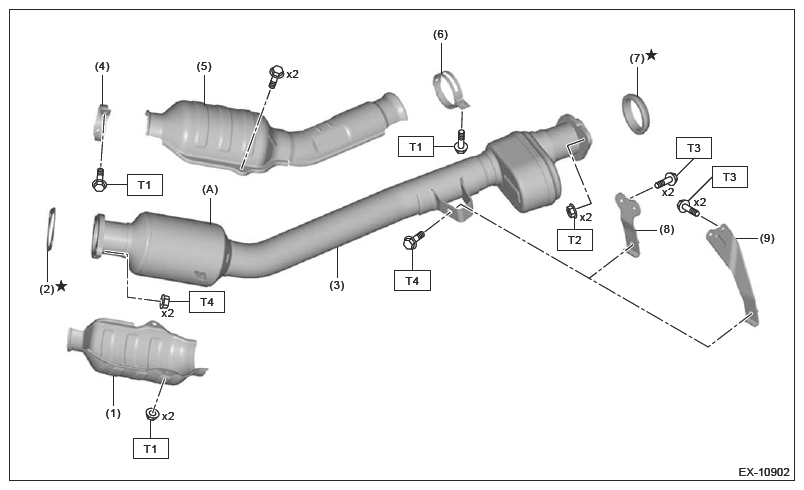

Center Exhaust Pipe
| (A) | Rear catalytic converter |
| (1) | Exhaust cover |
| (2) | Gasket |
| (3) | Center exhaust pipe |
| (4) | Band |
| (5) | Exhaust cover |
| (6) | Band |
| (7) | Gasket |
| (8) | Hanger bracket (MT model) |
| (9) | Hanger bracket (AT model) |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 18 (1.8, 13.3)
T3: 23 (2.3, 17.0)
T4: Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>INSTALLATION .
