Components With Torque Specifications

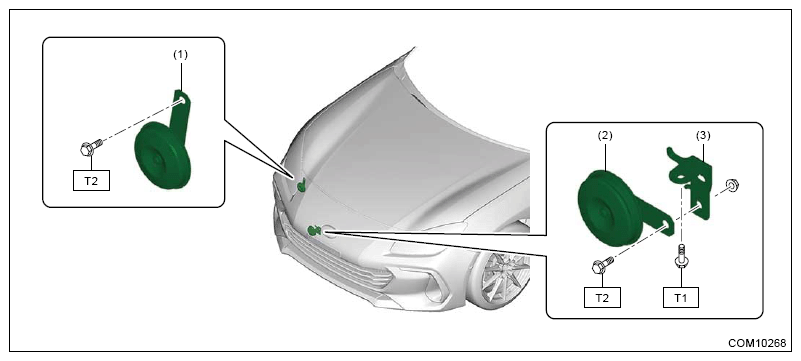

Fig 1: Horn Components Location
G16526916Courtesy of SUBARU OF AMERICA, INC.
(1) Horn ASSY Lo
(2) Horn ASSY Hi
(3) Horn bracket

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)
