Brakes
>>
Parking Brake System
>>
General Description
>>
Components With Torque Specifications
>>

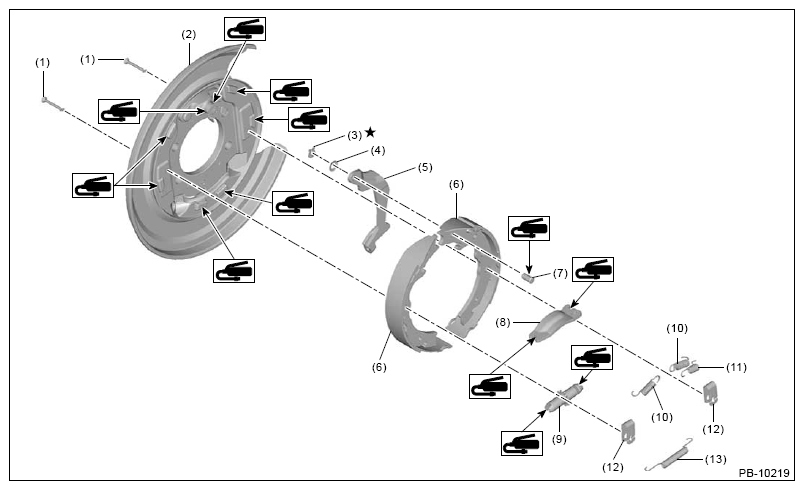

Parking Brake
Parking Brake
Courtesy of SUBARU OF AMERICA, INC.
(1)
Shoe set pin
(2)
Rear brake back plate
(3)
Ring retainer
(4)
Spring washer
(5)
Parking lever
(6)
Brake shoe
(7)
Parking lever pin
(8)
Strut
(9)
Adjuster ASSY
(10)
Spring A
(11)
Spring rod
(12)
Spring shoe clamp
(13)
Spring adjuster
Courtesy of SUBARU OF AMERICA, INC.
