Outer Mirror

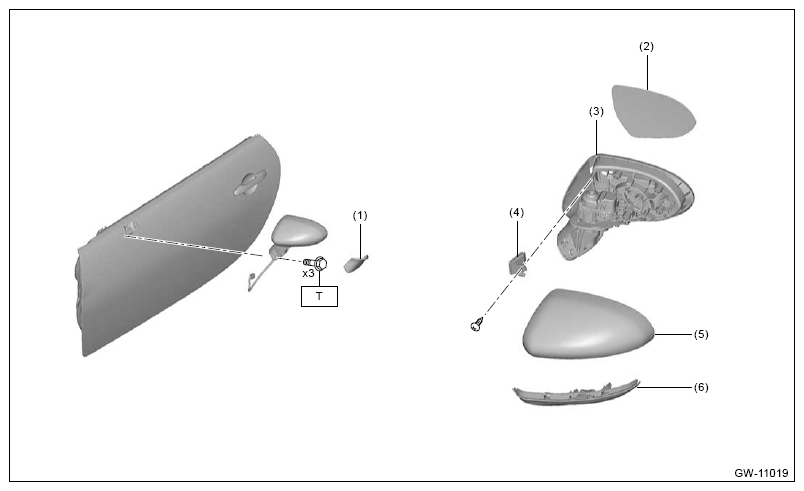

Fig 1: Outer Mirror Components Location

G16526973

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cover cap outer mirror
(2)	Mirror repair
(3)	Mirror unit door
(4)	Blind Spot Detection/Rear Cross Traffic Alert system indicator (model with Blind Spot Detection/Rear Cross Traffic Alert system)
(5)	Cover cap outer mirror
(6)	Cover cap outer mirror LWR

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
