Door Inner Remote: Removal: Front

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM"  . Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the remote assembly front door.

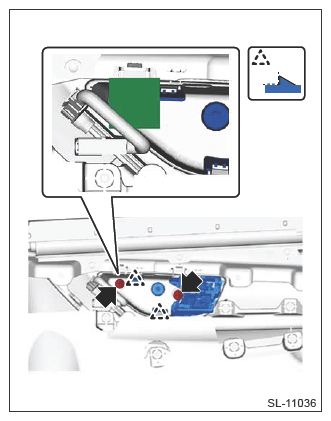

    1. Detach the unwoven cloth.
    2. Remove the screws.
    3. Release the claws and guides, and remove the remote assembly front door.
G13201407Courtesy of SUBARU OF AMERICA, INC.
