Noise Suppressor: Removal
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL
.
- Remove the noise suppressor assembly.

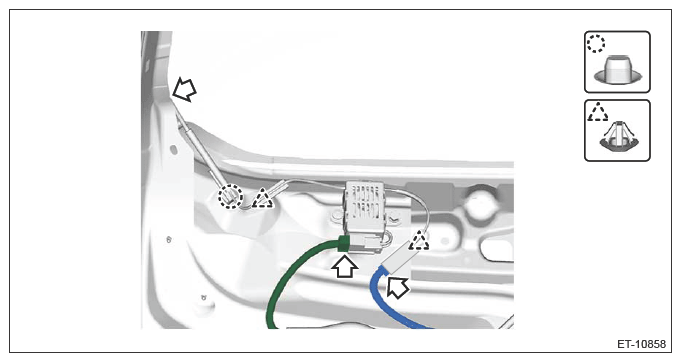

- Release each connector and harness clip.
 Courtesy of SUBARU OF AMERICA, INC.
|

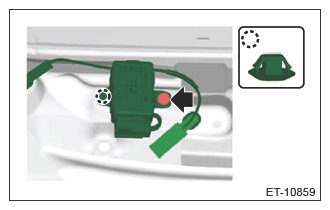

- Remove the bolts and release the clips, and then remove the noise suppressor assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
