Front Speaker: Removal: Door

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .

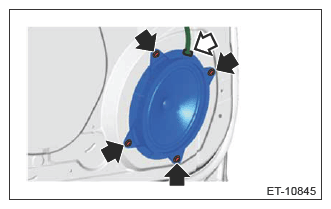

  3. Remove the speaker assembly front.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly front.
G13865701Courtesy of SUBARU OF AMERICA, INC.
