Front Speaker: Removal: Center

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the switch assembly hazard. Ref. to LIGHTING SYSTEM>Hazard Switch>REMOVAL .
  4. Remove the grille speaker assembly CTR.

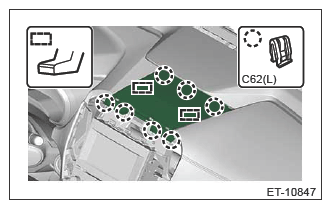

    1. Release the clips and hooks, then detach the grille speaker assembly CTR.
    G13865699Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the speaker assembly center.

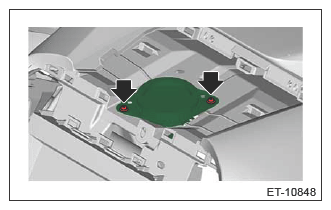

    1. Remove the screws.
      G13865700Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly center.
