Accessory Power Supply Socket: Removal: Rear

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

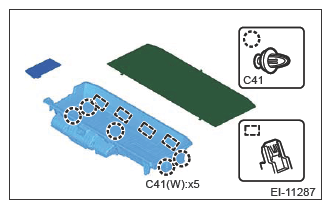

  2. Remove the floor mat side, floor mat center, and box sub-trunk assembly.
    G13865753Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the third-row seats. Ref. to SEATS>Third Seat>REMOVAL .
  4. Remove the trim panel assembly apron LH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

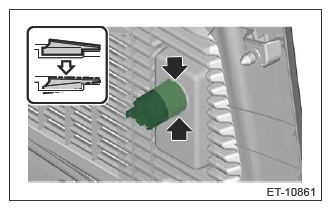

  5. Remove the socket assembly.
    1. While releasing the claw, press it in from the rear to remove the socket assembly.
G13865754Courtesy of SUBARU OF AMERICA, INC.
