Knee Airbag Module: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  4. Remove the knee airbag module.
    1. Disconnect the connector of knee airbag module. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>KNEE AIRBAG MODULE AND LAP SEAT BELT PRETENSIONER .
    2. Remove the data link connector.
    3. Remove the nuts, and remove the knee airbag module.

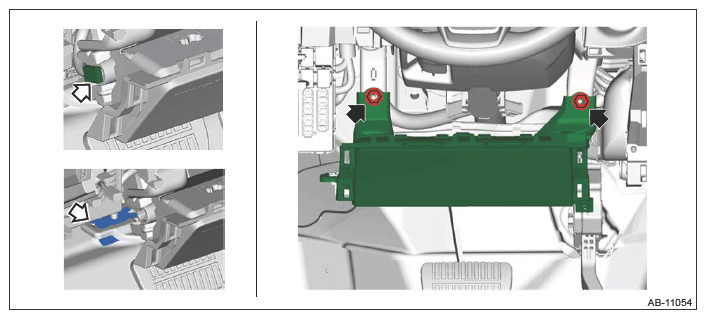

G13200657Courtesy of SUBARU OF AMERICA, INC.

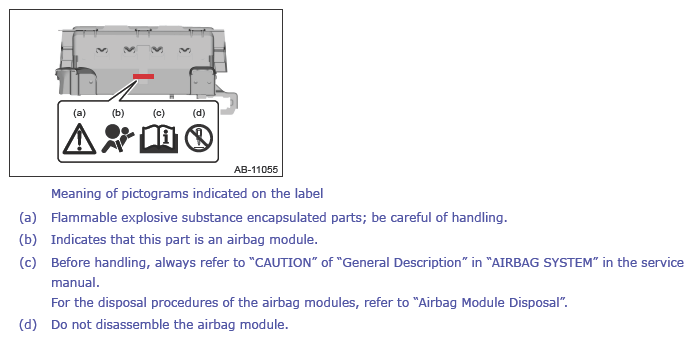

G13864477Courtesy of SUBARU OF AMERICA, INC.
