Before Starting Troubleshooting
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Even if any part must be replaced as the result of troubleshooting, do not use an airbag part or pretensioner part from other vehicles. Always replace the defective parts with new parts.

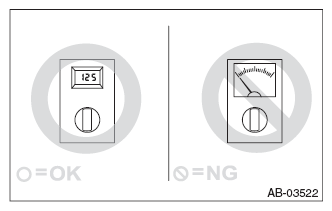

- When checking the airbag system, be sure to use a digital circuit tester. Use of an analog circuit tester may cause the airbag to activate erroneously due to a minimal current inside tester.
- Do not allow water or oil to come in contact with the connector terminals. Also, do not touch the connector terminals directly.

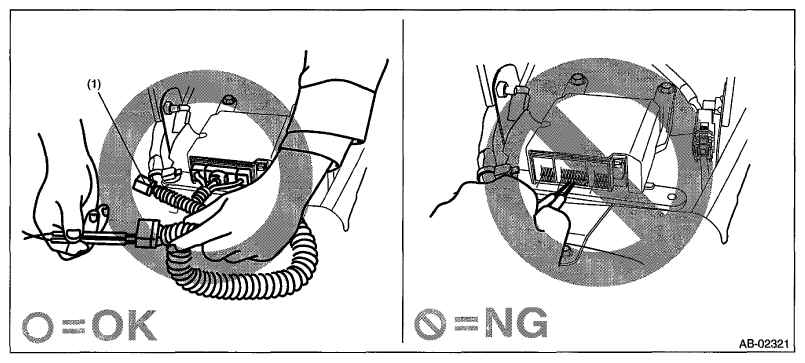

- When checking, use a test harness (1). Damage to connector terminal causes malfunction. Do not directly put the tester probe on airbag connector terminal.
- Do not check the continuity of airbag modules and pretensioners.
