Front Disc Rotor: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the disc brake assembly front.

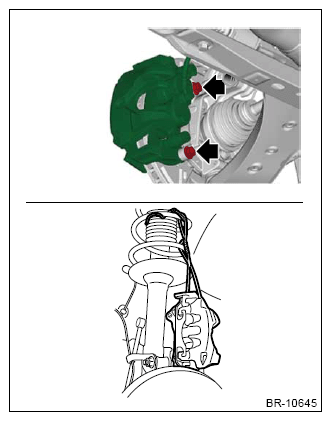

    1. Remove the mounting bolt, and remove the disc brake assembly front.
    2. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly front from the strut assembly.
    G13199731Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the brake disc front.

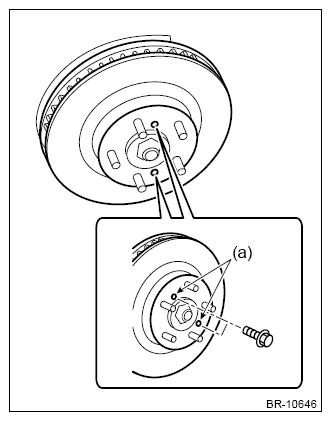

    NOTE: When the brake disc front is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part of the brake disc front (a), and remove the brake disc front.
    G13199732Courtesy of SUBARU OF AMERICA, INC.
