Front Brake Pad: Removal
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Lift up the vehicle, and then remove the front wheels.
- Remove the pad COMPL.
- Remove the pad clip.
 Courtesy of SUBARU OF AMERICA, INC.
|

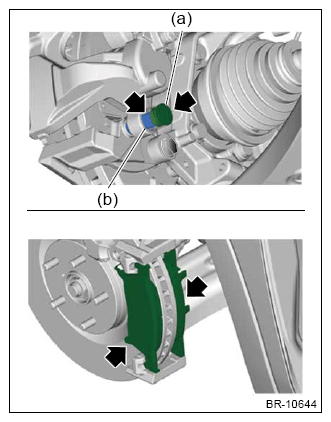

- Remove the lower cap (a) and guide pin front brake (b), and remove the pad COMPL.
NOTE:
Do not disconnect the brake hose from the caliper body.
Preparation tool:
Hexagon wrench: 11 mm (0.43 in)
 Courtesy of SUBARU OF AMERICA, INC.
|
