System Block Diagram

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

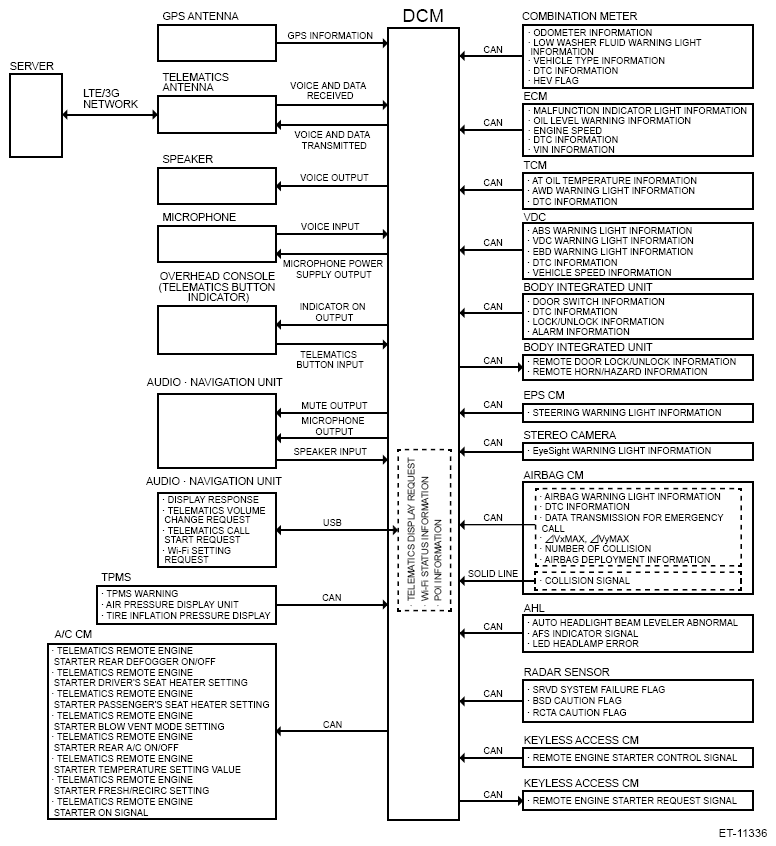

Main signals used between DCM and relevant control module

G13873645Courtesy of SUBARU OF AMERICA, INC.
