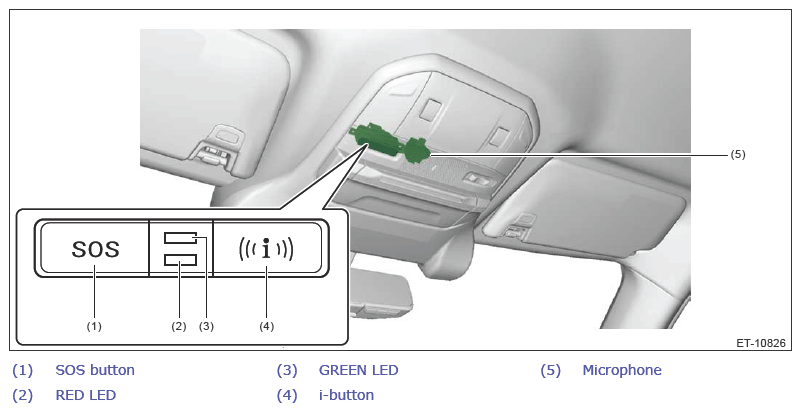

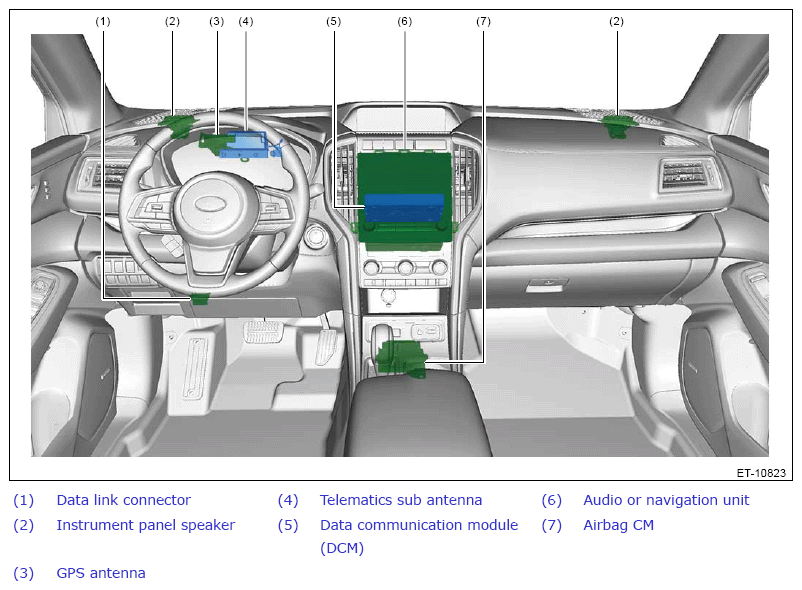

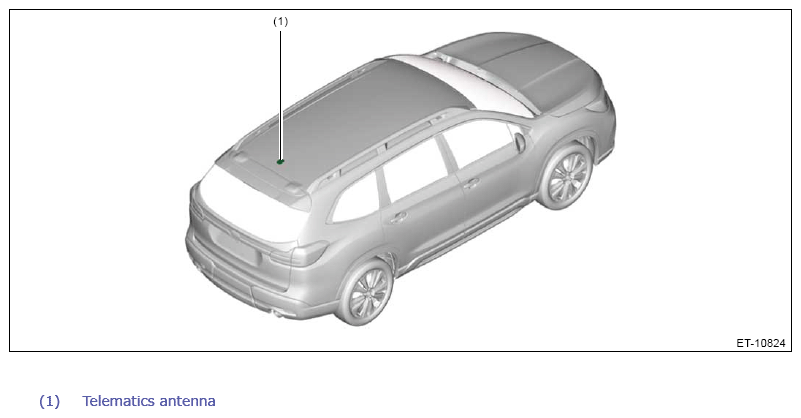

Section 16 (Telematics System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For the LED operation condition, refer to "LED operation condition" in "Check List for Interview". Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>Check List for Interview>CHECK>LED ILLUMINATION STATUS LIST .
