Power Seat Switch

  1. Prior to starting work, check the following precautions. Ref. to SEATS>General Description>CAUTION .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the front seat from vehicle, Ref. to SEATS>Front Seat>REMOVAL
  4. Remove the cover hinge outside.
    1. Release it from the hinge base cover outside in the rear side.
    2. Release the clips and clip engagement.
    3. Pull forward to release the claw (a), and remove the cover hinge outside after disconnecting the connector.

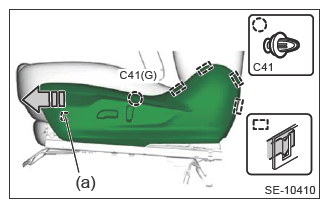

      • Type without lumbar function
        G13201123Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Symmetrical on passenger's seat

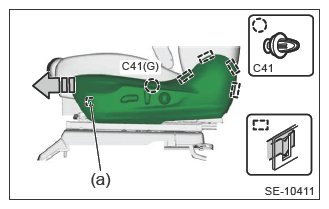

      • Type with lumbar function
        G13201124Courtesy of SUBARU OF AMERICA, INC.

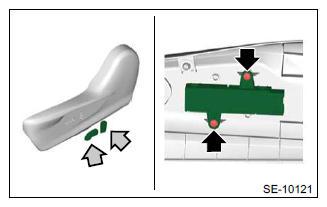

  5. Remove the power seat switch assembly.
    1. Remove the knob power seat.
    2. Remove the screws to remove the switch assembly power seat.
      • Type without lumbar function
        G11246270Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Symmetrical on passenger's seat
      • Type with lumbar function
        G13201377Courtesy of SUBARU OF AMERICA, INC.
