Transmission Case: Disassembly

  1. Remove the transmission harness from the transmission case.
    NOTE: Remove the connector by disengaging the connector claw from the inside of the transmission case.

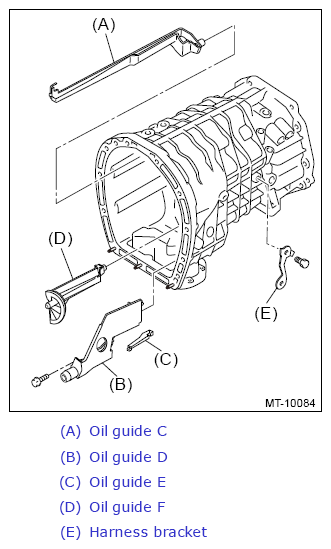

  2. Remove the oil guides C, D, E, F and harness bracket.
    G13648092Courtesy of SUBARU OF AMERICA, INC.

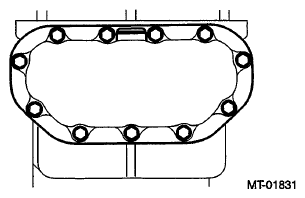

  3. Remove the oil pan.
    G06345984Courtesy of SUBARU OF AMERICA, INC.
  4. Remove any remaining liquid gasket from the transmission case and oil pan.
