Transmission Case: Assembly

Apply liquid gasket to the oil pan.
Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

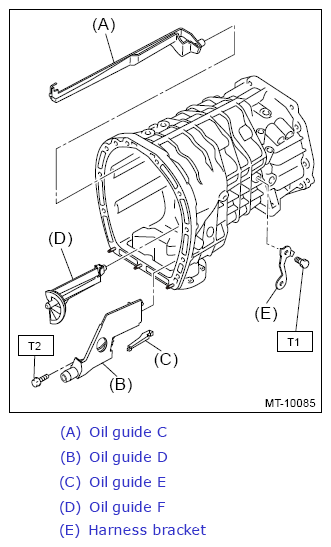

Install the oil guides C, D, E, F and harness bracket.
Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Oil Guides, Harness Bracket And Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

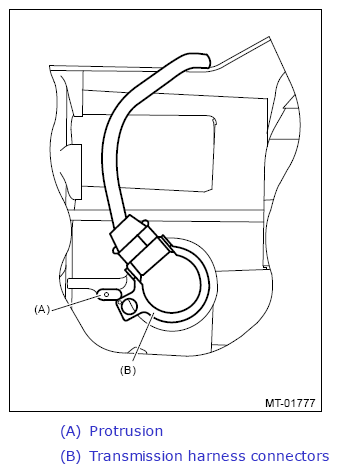

Install the transmission harness to the transmission.
NOTE: Install the transmission harness connector by aligning the protrusions of the transmission and transmission harness connector.

Courtesy of SUBARU OF AMERICA, INC.
