Transfer Driven Gear: Assembly

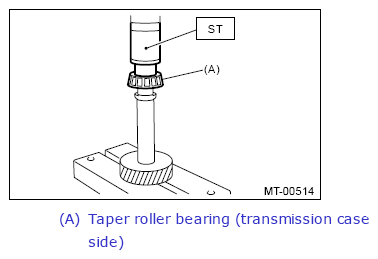

Using the ST, install the taper roller bearing (transmission case side).
ST 499757002 INSTALLER
CAUTION:
- Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Apply transmission gear oil onto sliding or revolving surfaces before installation.
NOTE: Be careful when handling because the taper roller bearing and the outer race are used as a set.

Courtesy of SUBARU OF AMERICA, INC.

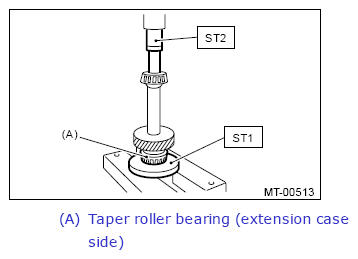

Using the ST, install the taper roller bearing (extension case side).
ST1 398177700 INSTALLER

ST2 899864100 REMOVER
CAUTION:
- Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Apply transmission gear oil onto sliding or revolving surfaces before installation.
NOTE: Be careful when handling because the taper roller bearing and the outer race are used as a set.

Courtesy of SUBARU OF AMERICA, INC.
