Neutral Position Switch: Removal

  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Disconnect the connector and clip of the neutral position switch.

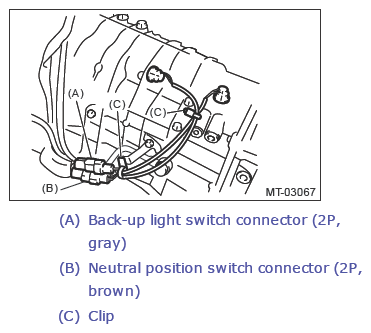

    G13648023Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the neutral position switch.

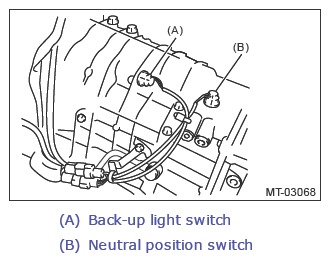

    G13648024Courtesy of SUBARU OF AMERICA, INC.
