Oil Pan & Oil Guide

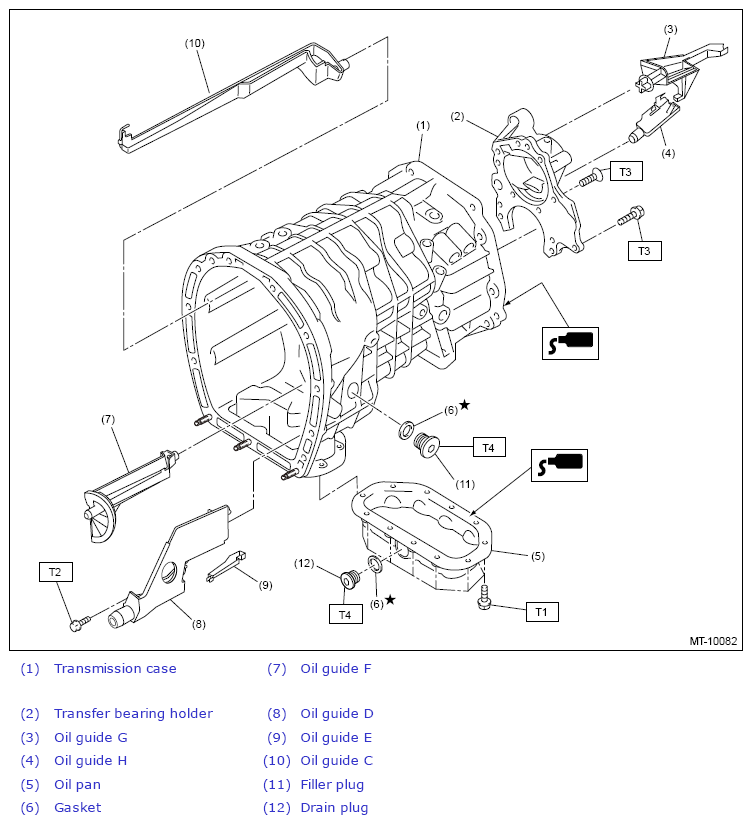

Fig 1: Oil Pan And Oil Guide Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 25 (2.5, 18.4)

T4: 50 (5.1, 36.9)
