Front Differential Assembly

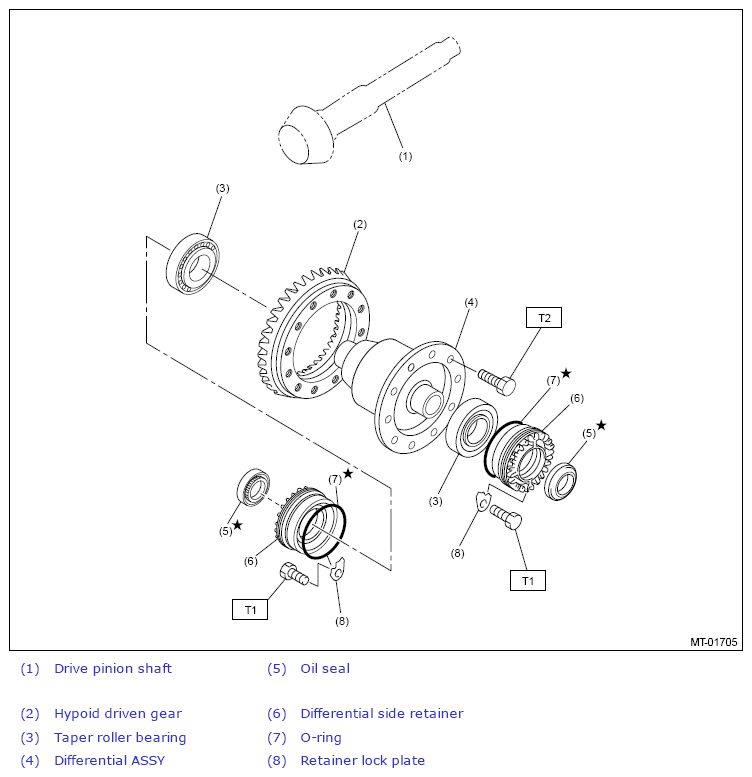

Fig 1: Front Differential Assembly Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 69 (7.0, 50.9)
