Manual Transaxle & Differential (TY856)
>>
General Description
>>
Components With Torque Specifications
>>
Adapter Plate
Adapter Plate

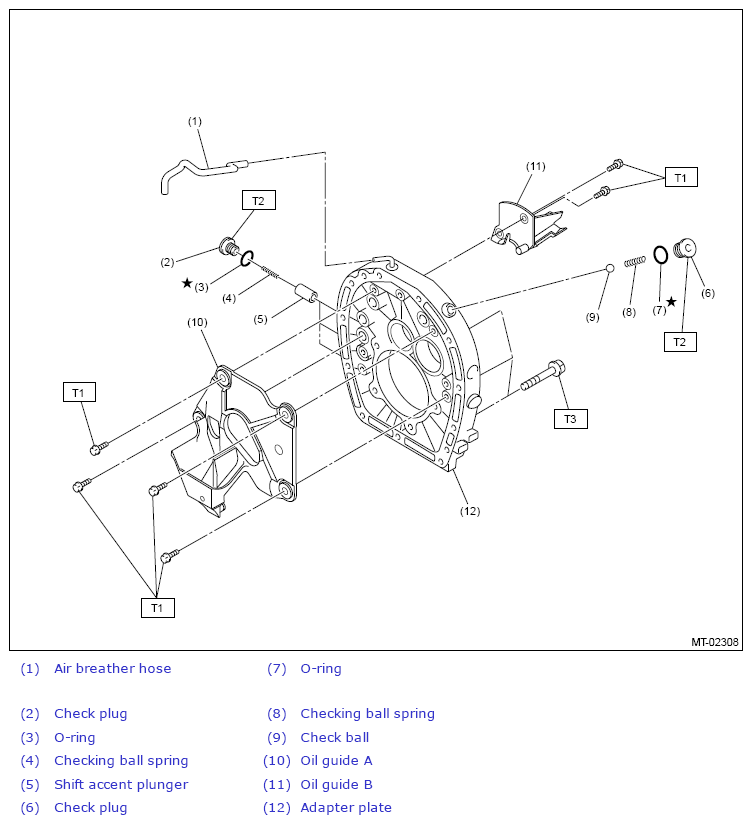

Fig 1: Adapter Plate Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 18 (1.8, 13.3)
T2: 25 (2.5, 18.4)
T3: 50 (5.1, 36.9)
Courtesy of SUBARU OF AMERICA, INC.
