Differential Case

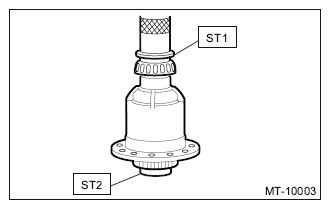

Using the ST, attach the RH and LH taper roller bearing inner races to the differential case.
ST1 398437700 INSTALLER

ST2 398497701 SEAT

CAUTION: Do not apply pressure in excess of 20 kN (2.0 ton, 2.2 US ton, 2.0 Imp ton).

NOTE: Always replace the taper roller bearing inner race and outer race as a set.

Courtesy of SUBARU OF AMERICA, INC.
Install the hypoid driven gear to differential case.
ST 18270KA020 SOCKET (E20)

Tightening torque:

69 N.m (7.0 kgf-m, 50.9 ft-lb)
