Back-up Light Switch: Removal

  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .

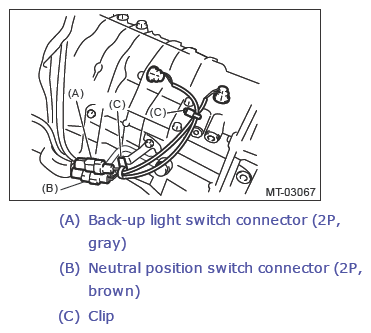

  2. Disconnect the back-up light switch connector.
    G13648019Courtesy of SUBARU OF AMERICA, INC.

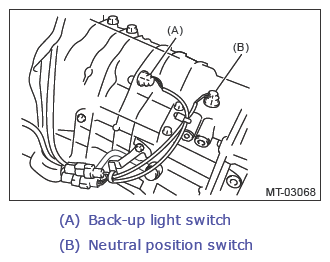

  3. Disconnect the back-up light switch.
    G13648020Courtesy of SUBARU OF AMERICA, INC.
