Section 12 (Engine Cooling System (2.0L)): Radiator: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check that the radiator does not have deformation, cracks or damage.
- Check that the hose has no cracks, damage or loose part.

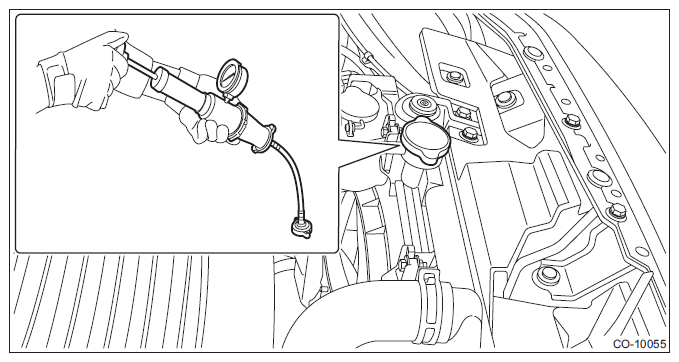

- Remove the radiator cap, fill the radiator with engine coolant, and then install the radiator cap tester to the filler neck of radiator.
- Apply a pressure of 157 kPa (1.6 kg/cm2
, 23 psi) to the radiator and check the following points:
- Leakage from the radiator or its vicinity
- Leakage from the hose or its connections
CAUTION:- Engine should be turned off.
- Clean the check points.
- Be careful not to deform the filler neck of radiator when installing and removing the radiator cap tester.
- Be careful of engine coolant from spurting out when removing the radiator cap tester.
