Chain Cover

WARNING: This page is about a different variant/trim than selected.

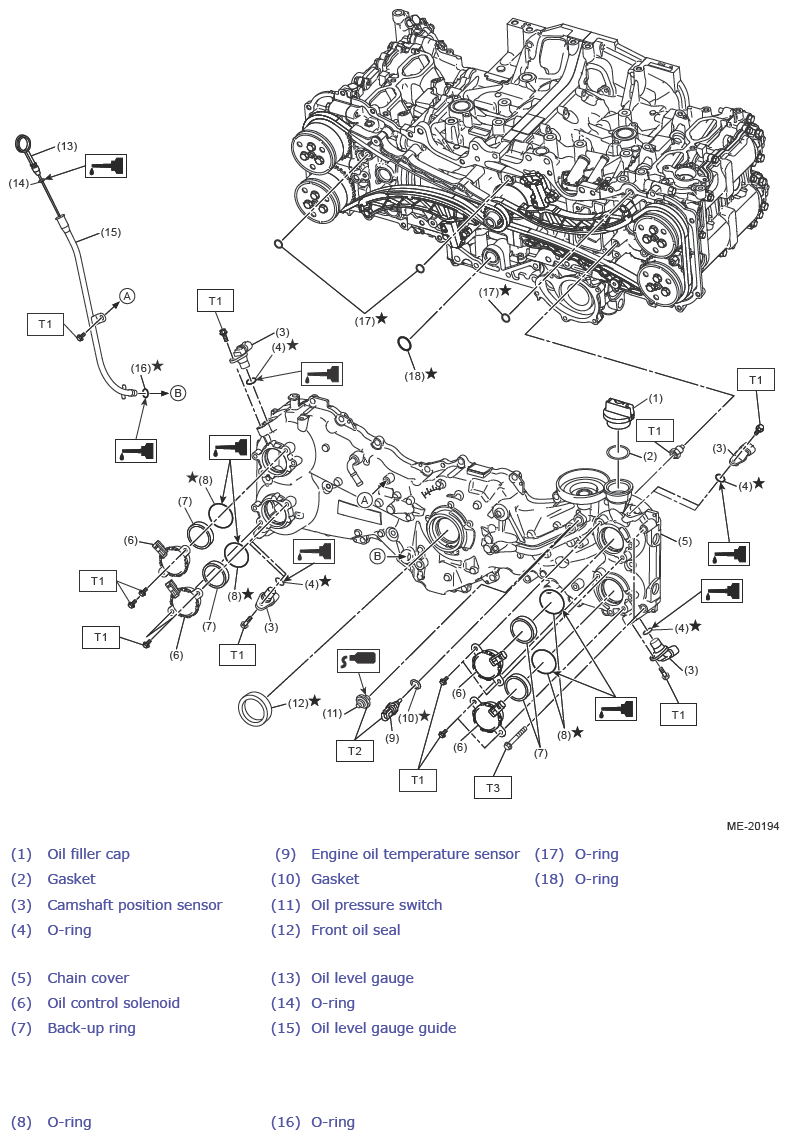

Fig 1: Chain Cover Components (With Torque Specification)

G13641592

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: Refer to MECHANICAL(W/O STI)>CHAIN COVER>INSTALLATION .
