License Plate Light Bulb: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the license plate light without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL
  3. Remove the license plate light bulb.

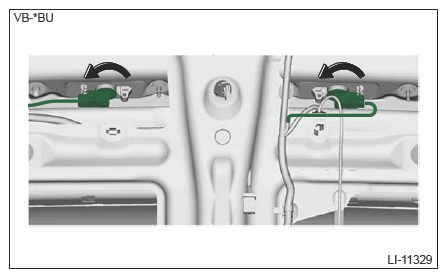

    1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
      G14612388Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the license plate light bulb.
